Technical Specifications
Addressable COB LED Strip Light 320 LEDs/m, 24V
Professional Product Description
Smooth, Continuous & Dynamic Lighting
This high-density addressable COB LED strip features 320 LEDs per meter, integrated under a continuous phosphor coating that creates a perfectly uniform, dot-free line of light. Unlike traditional LED strips where individual diodes are visible, this COB design delivers a seamless, neon-like glow with no hotspots, making it ideal for architectural, decorative, and ambient lighting applications.
Thanks to its addressable (digital) technology, each segment of the strip can be controlled independently. This allows the lighting to animate in flowing, running, or wave-like effects, even though the strip emits a single white color. Brightness levels can vary per segment, creating motion and depth along the strip that standard analog LED tapes cannot achieve.
Operating on 24V DC, the strip provides higher efficiency, improved stability, and reduced voltage drop compared to 5V & 12V systems. This makes it suitable for longer installations while maintaining consistent brightness and reliable performance.
.
Key Features
COB Technology — Continuous Light Output
The Chip-On-Board construction places LEDs extremely close together on an 10 mm wide flexible PCB, forming a smooth, uninterrupted line of light. With 320 LEDs per meter and a CRI above 90, colors and surface textures appear natural and accurate. The light is soft, glare-free, and visually refined — perfect for modern interiors, accent lighting, coves, niches, baseboards, and custom architectural details.
Each 5 m (16.4 ft) roll is available in:
Warm White (~3000 K)
Neutral White (~4000 K)
Cool White (~6000 K)
Each strip emits a single fixed color temperature (this is not a tunable CCT strip).
.
Individually Addressable Design
Integrated driver ICs allow each segment of the strip to be controlled independently. The strip can be cut every ~8 cm, with each segment acting as its own controllable pixel. After cutting, segments remain fully functional when properly reconnected.
This digital control enables dynamic effects such as:
Running or chasing light
Flowing waves
Pulsing or breathing animations
Directional movement along the strip
Even with a single white color, varying brightness across segments creates impressive animated effects that appear smooth and continuous thanks to the COB structure.
. Smart Controller & App Control

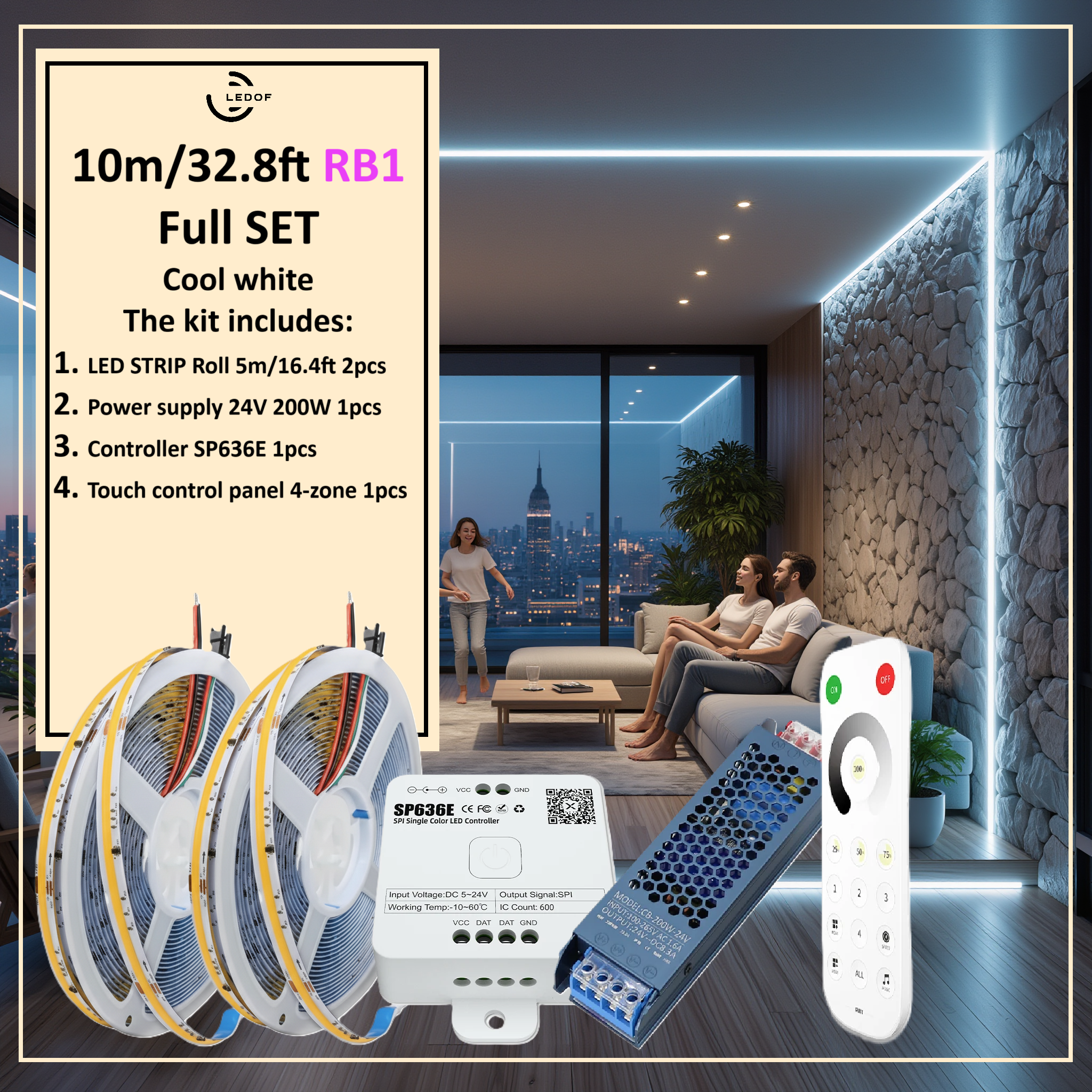

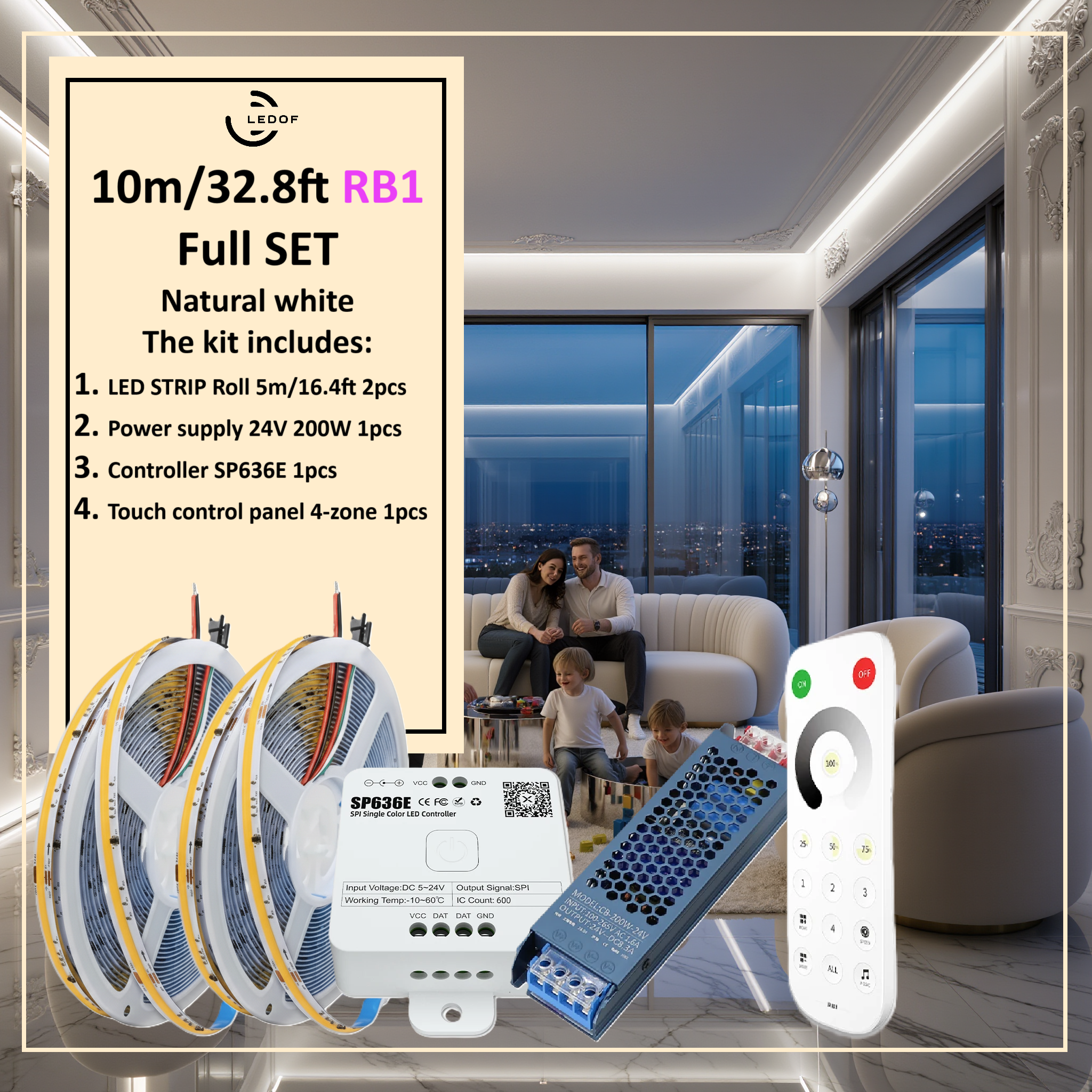

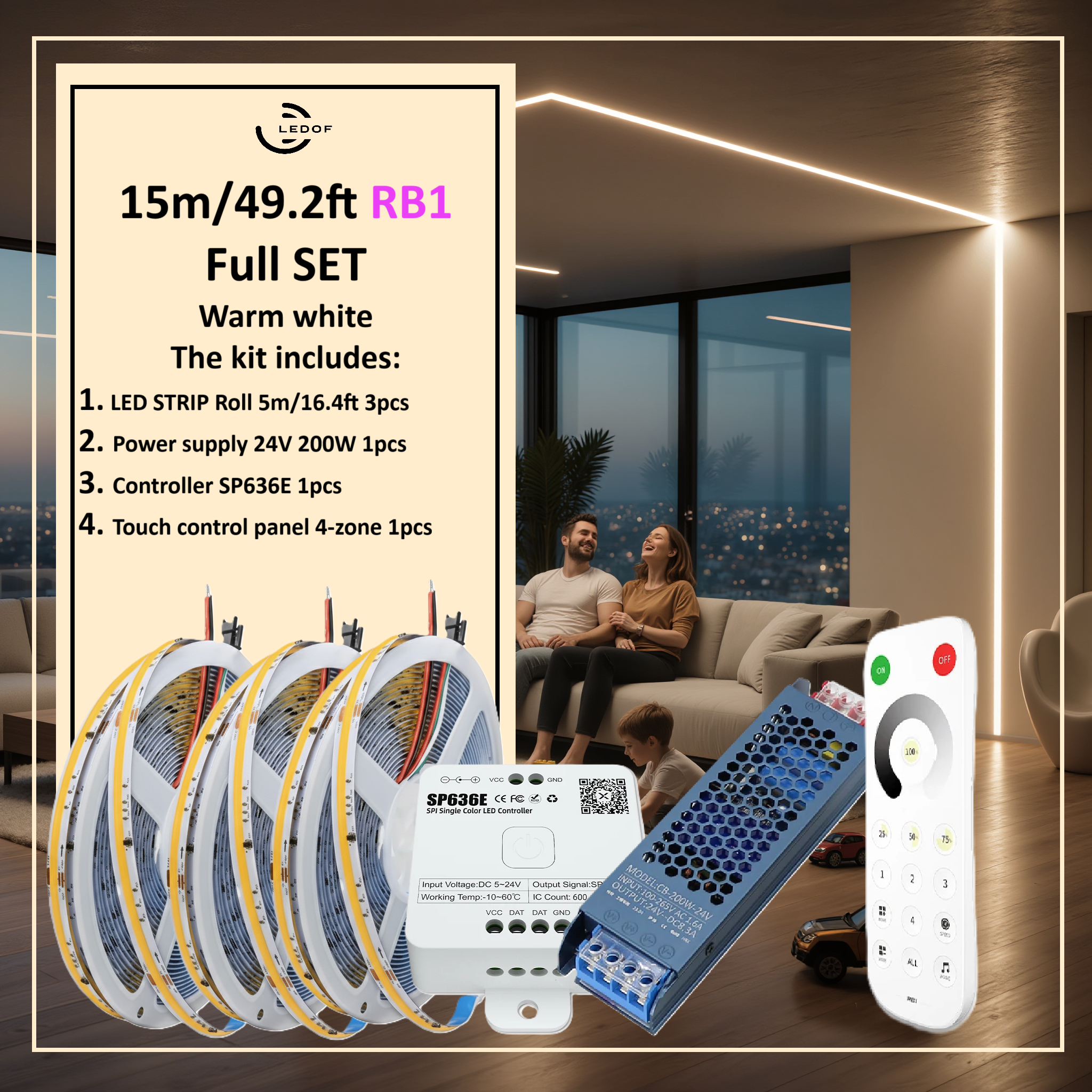

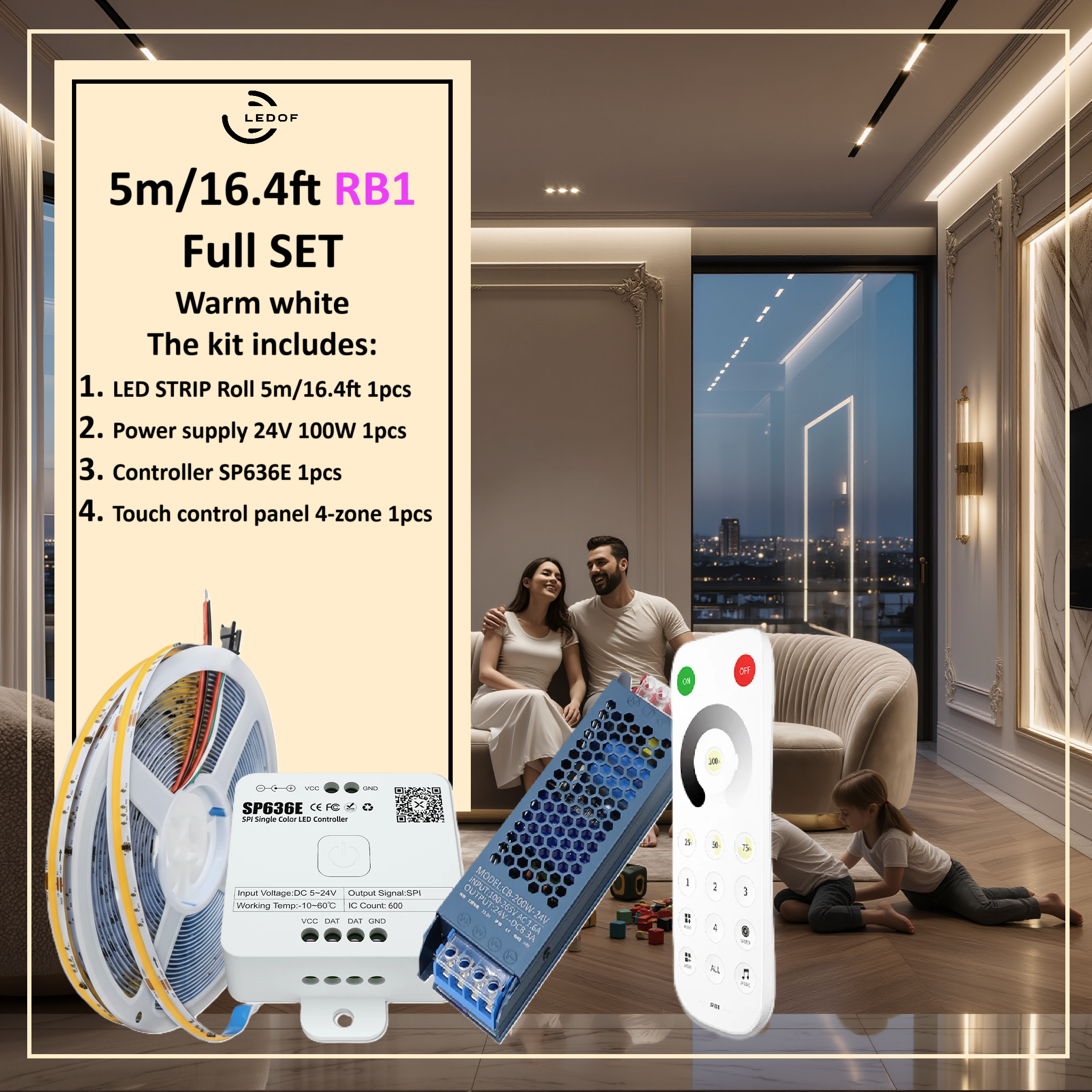

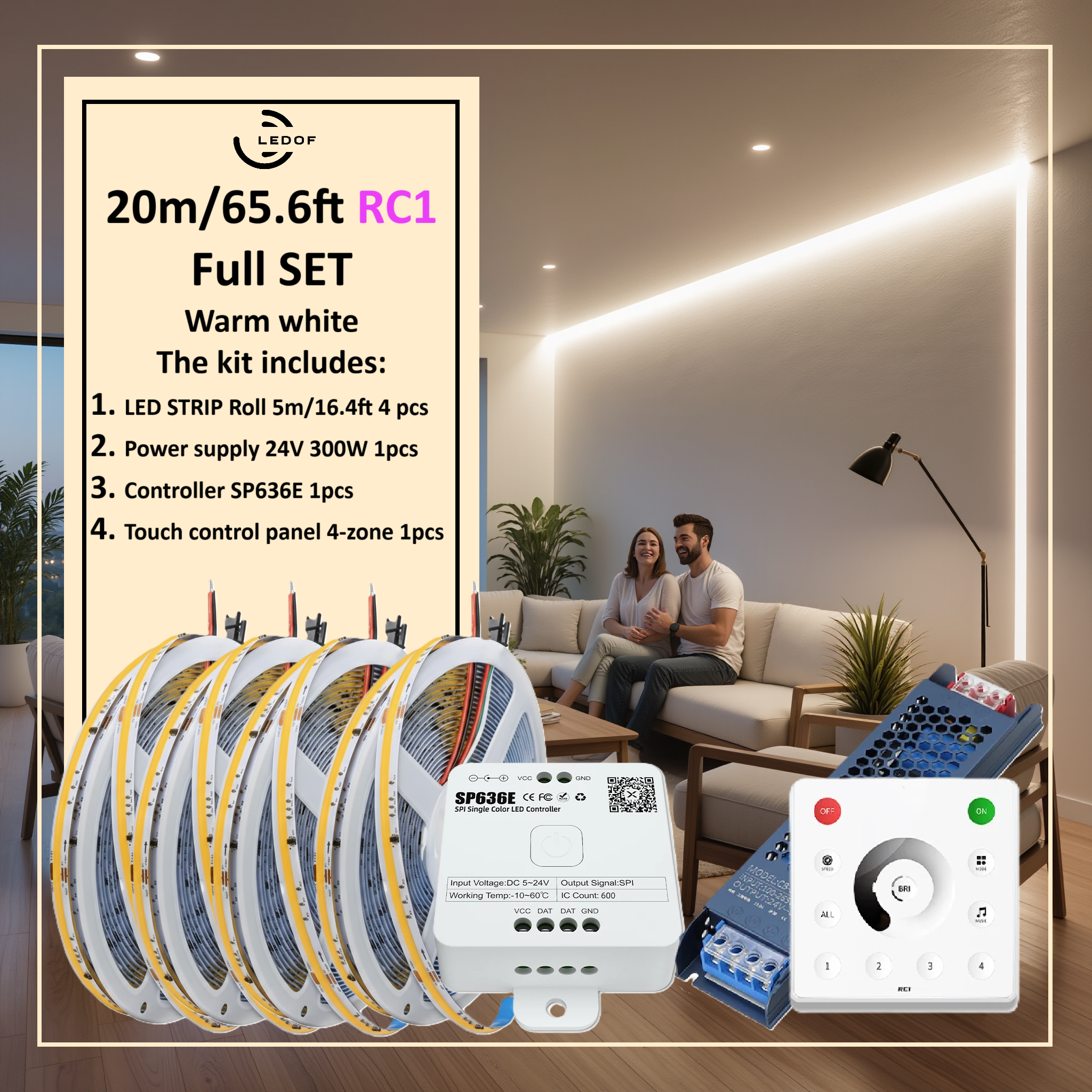

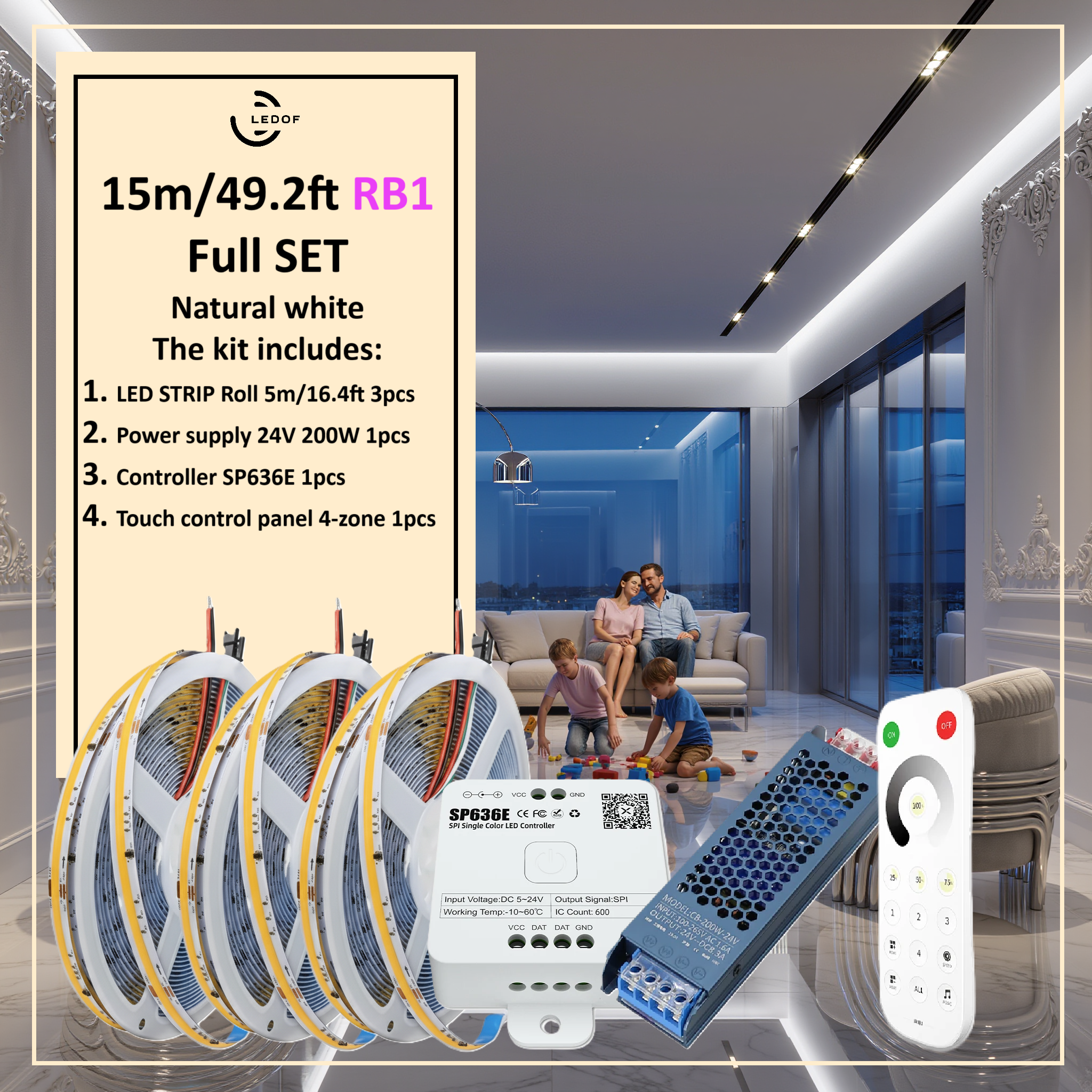

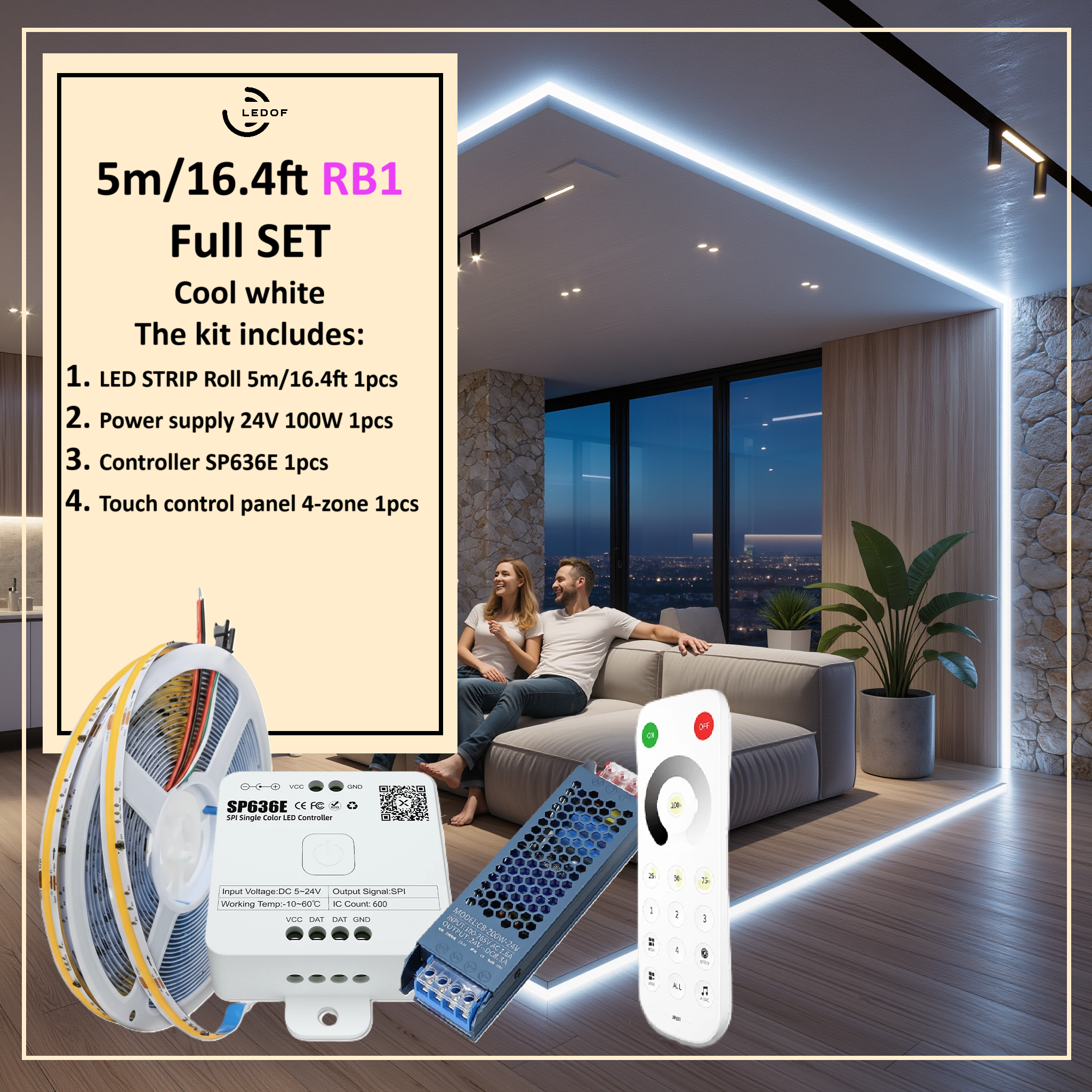

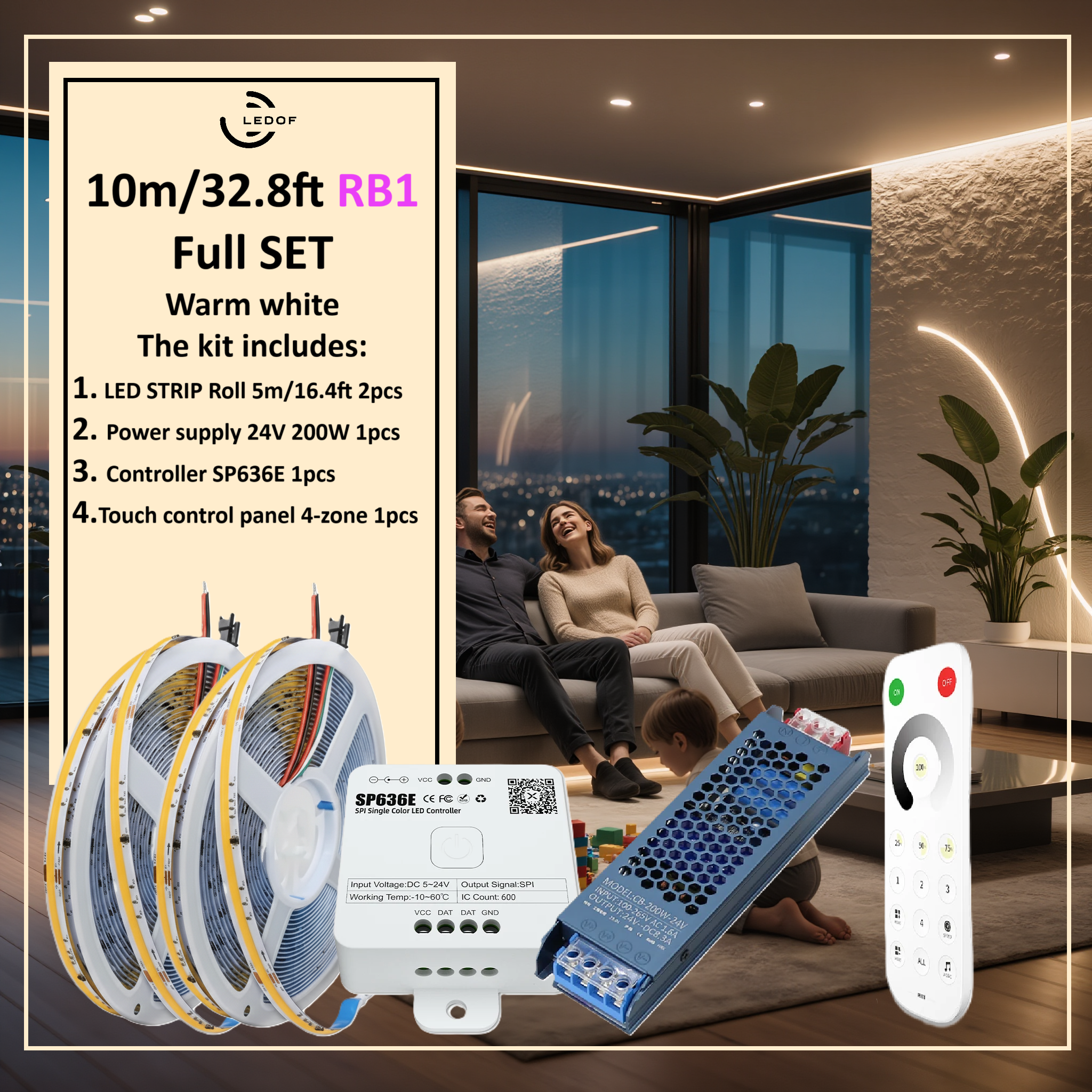

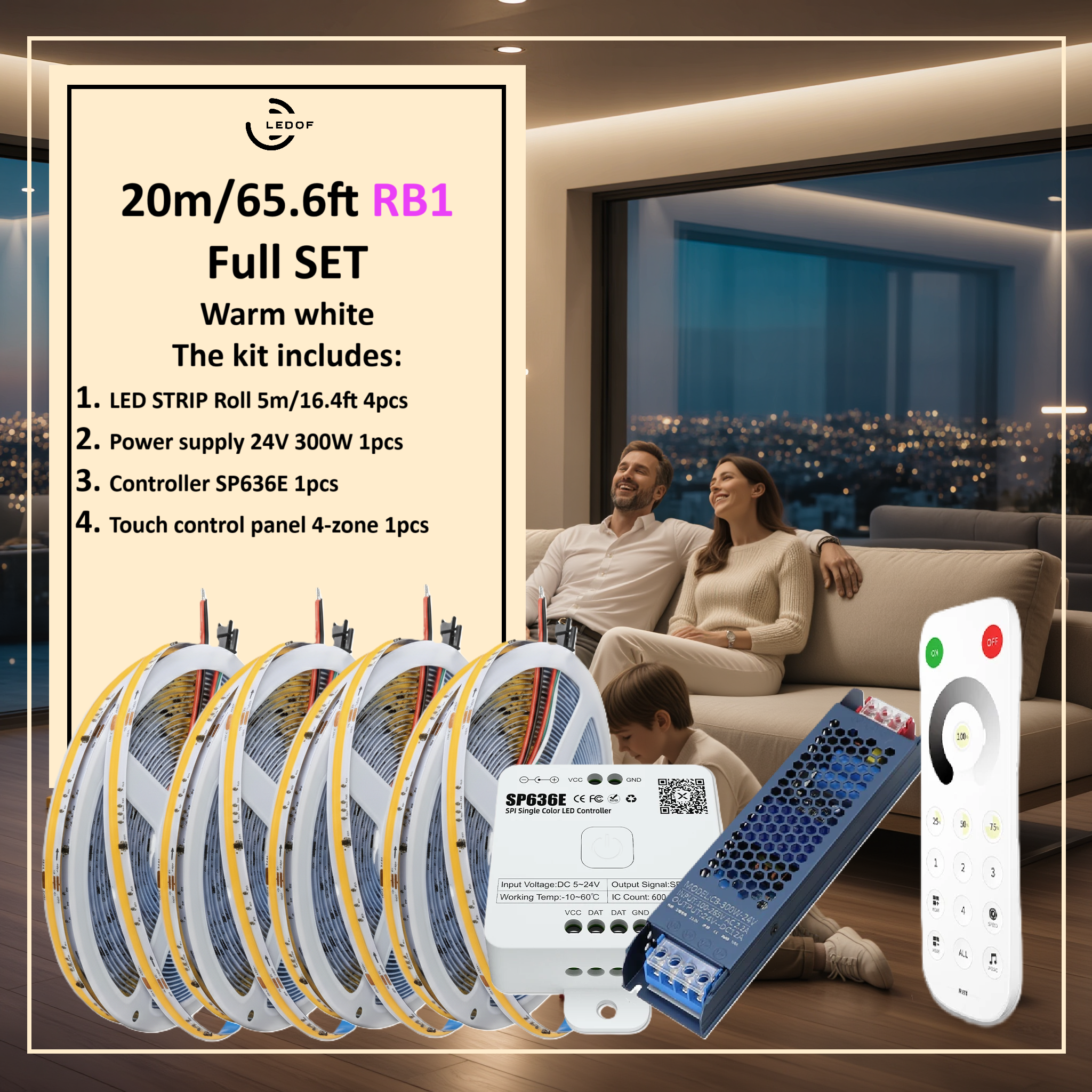

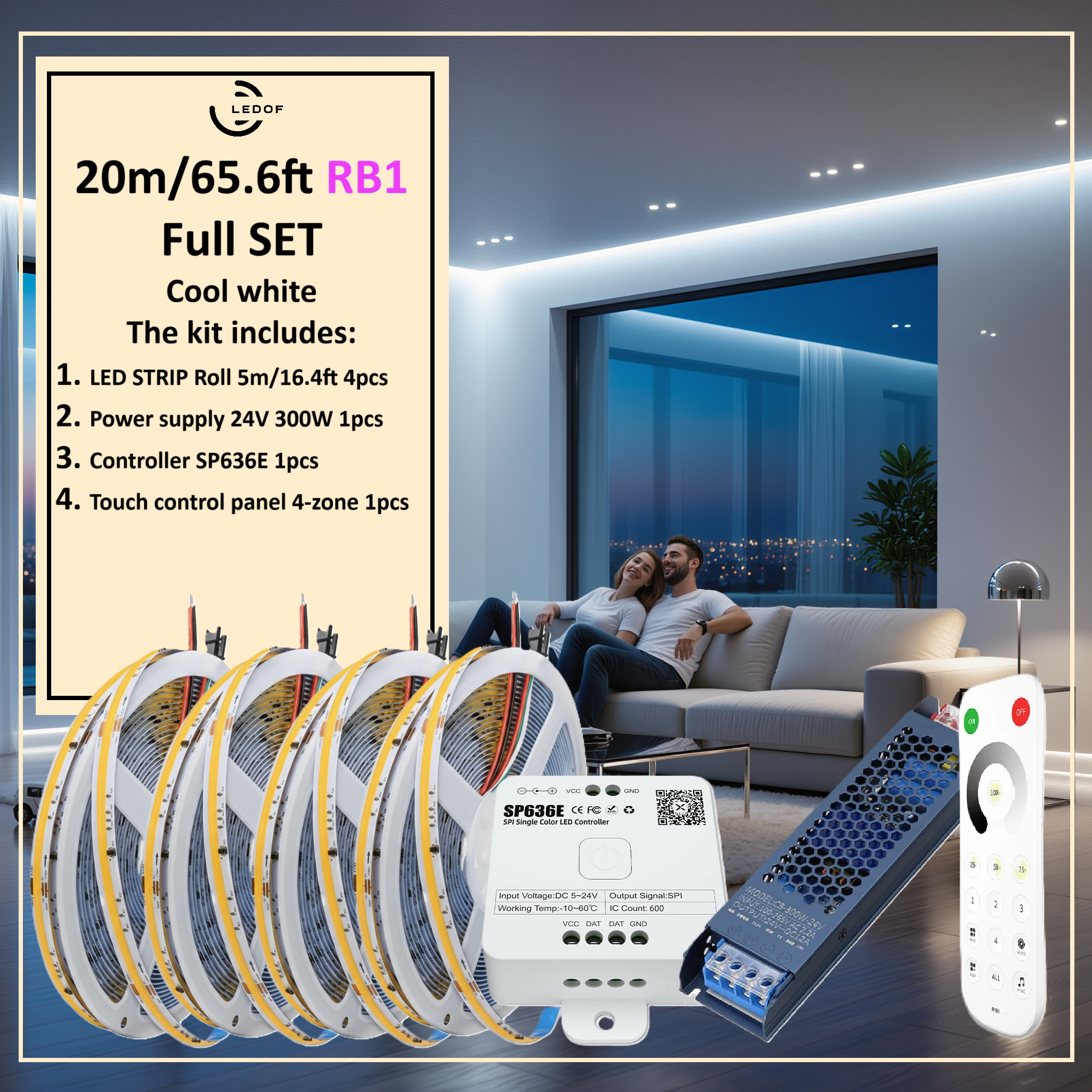

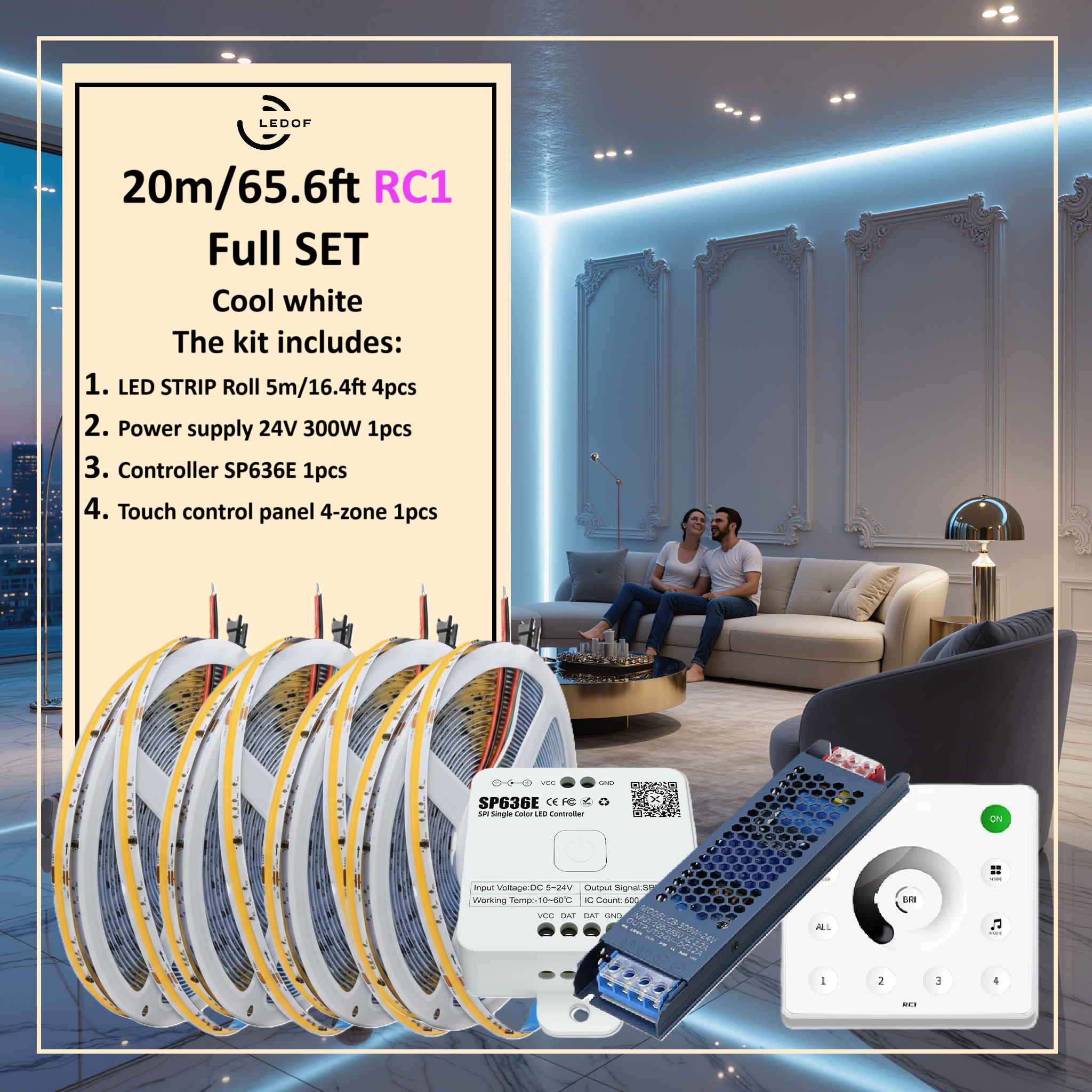

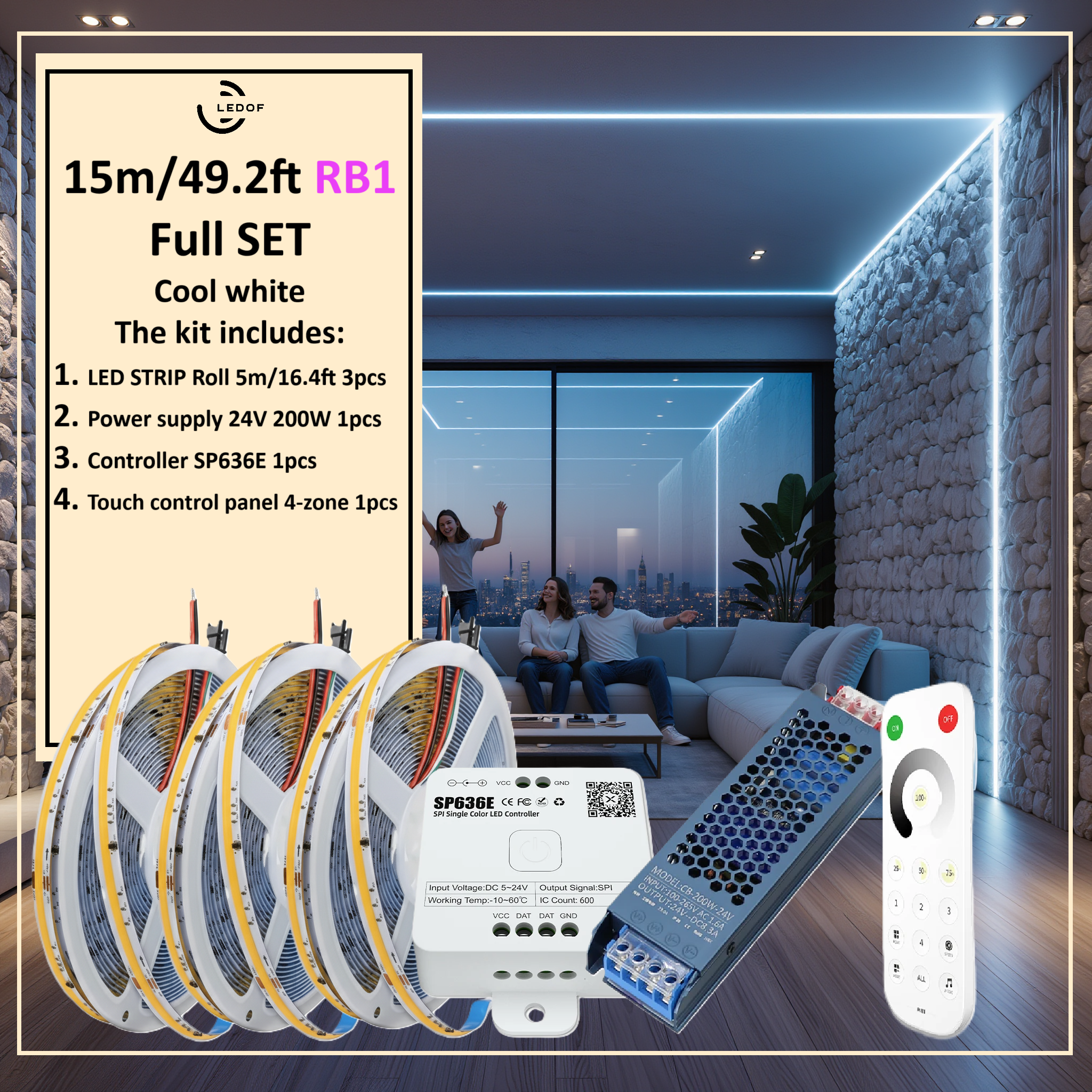

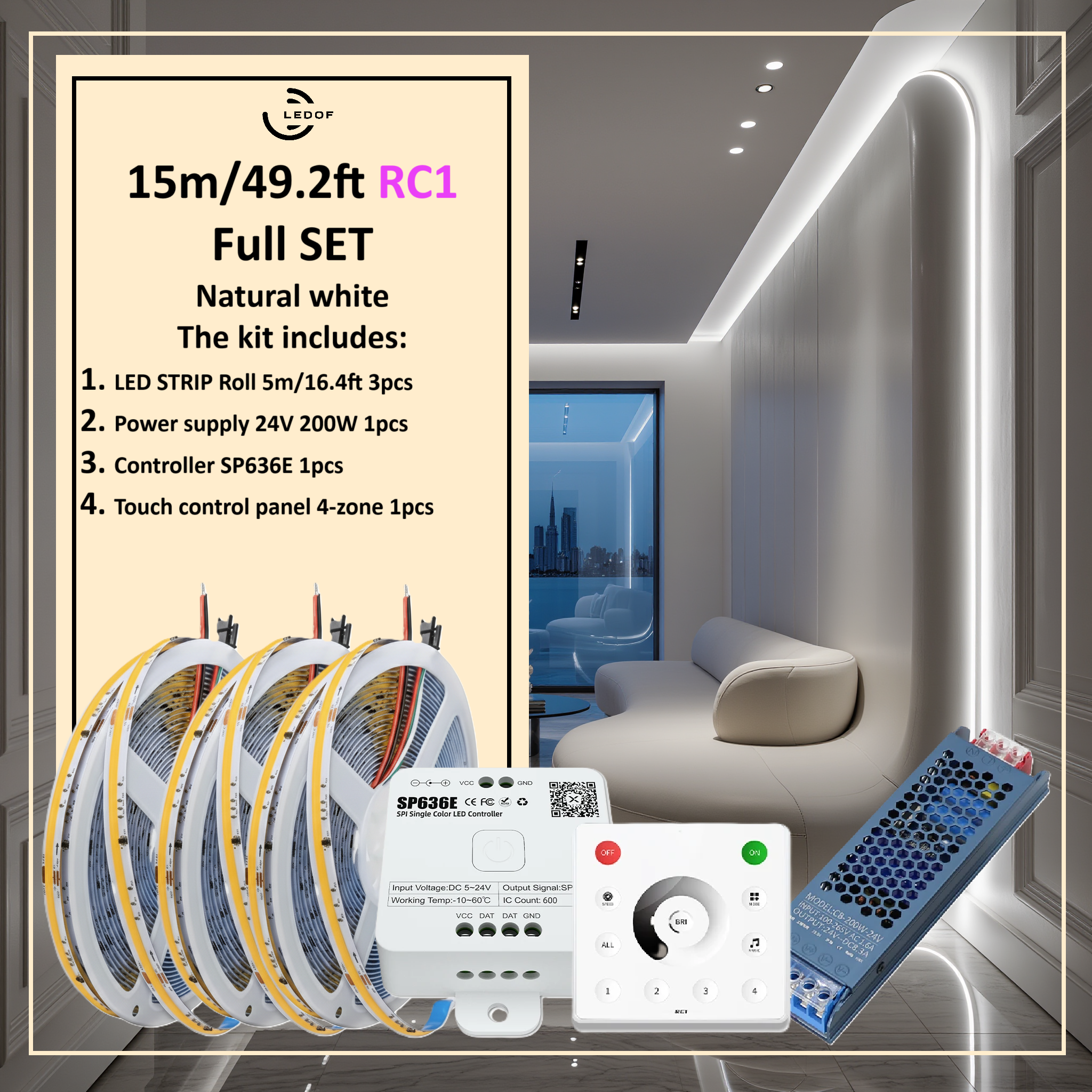

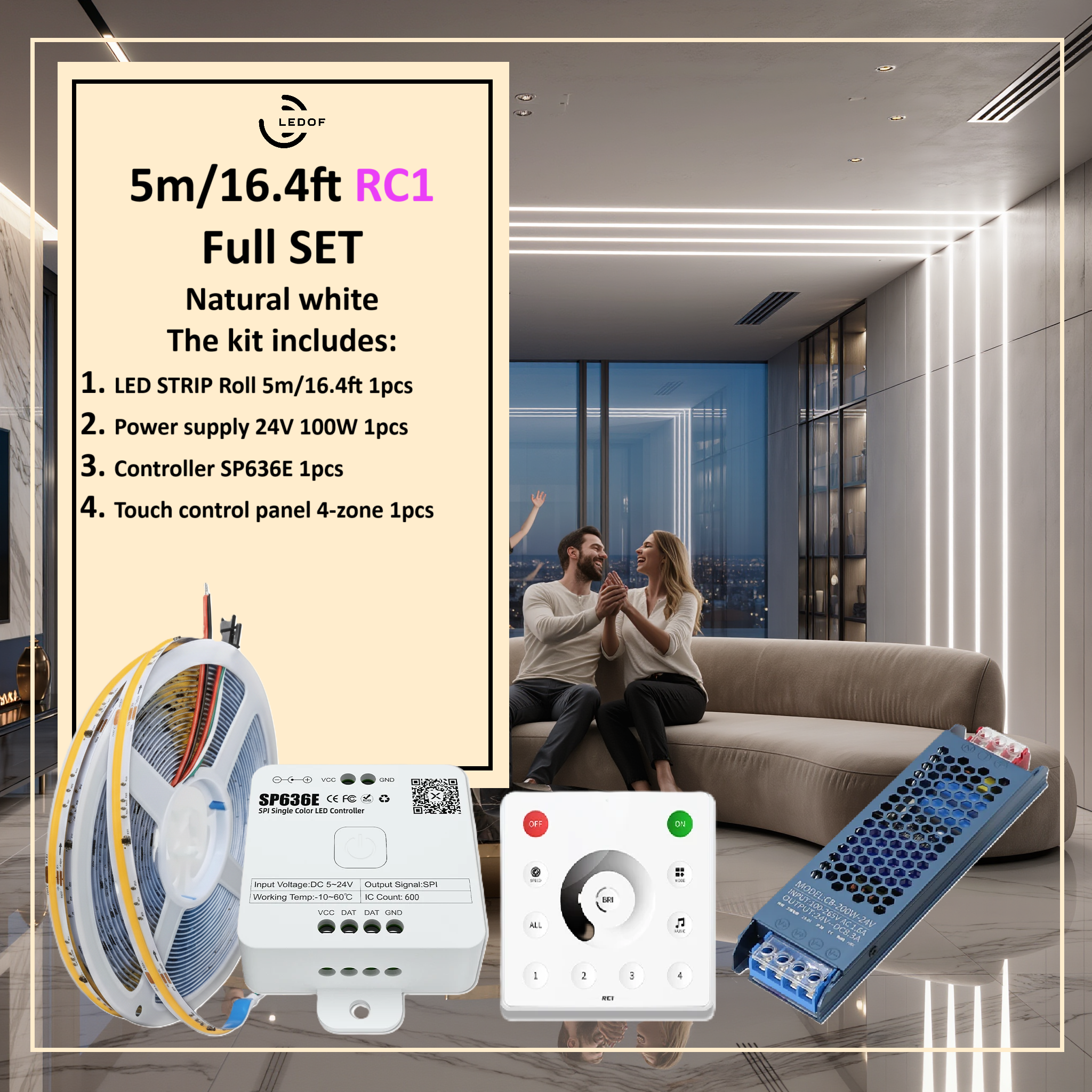

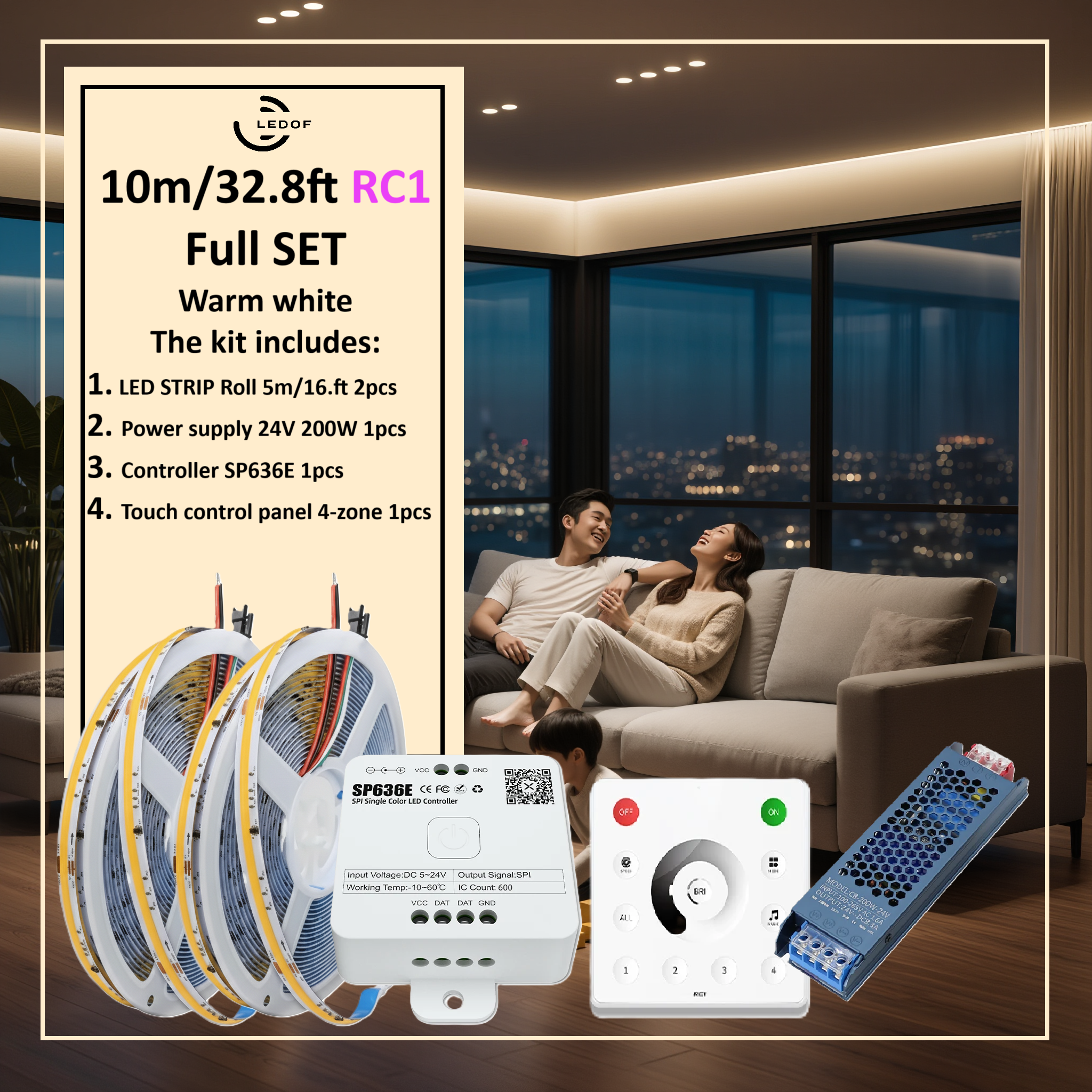

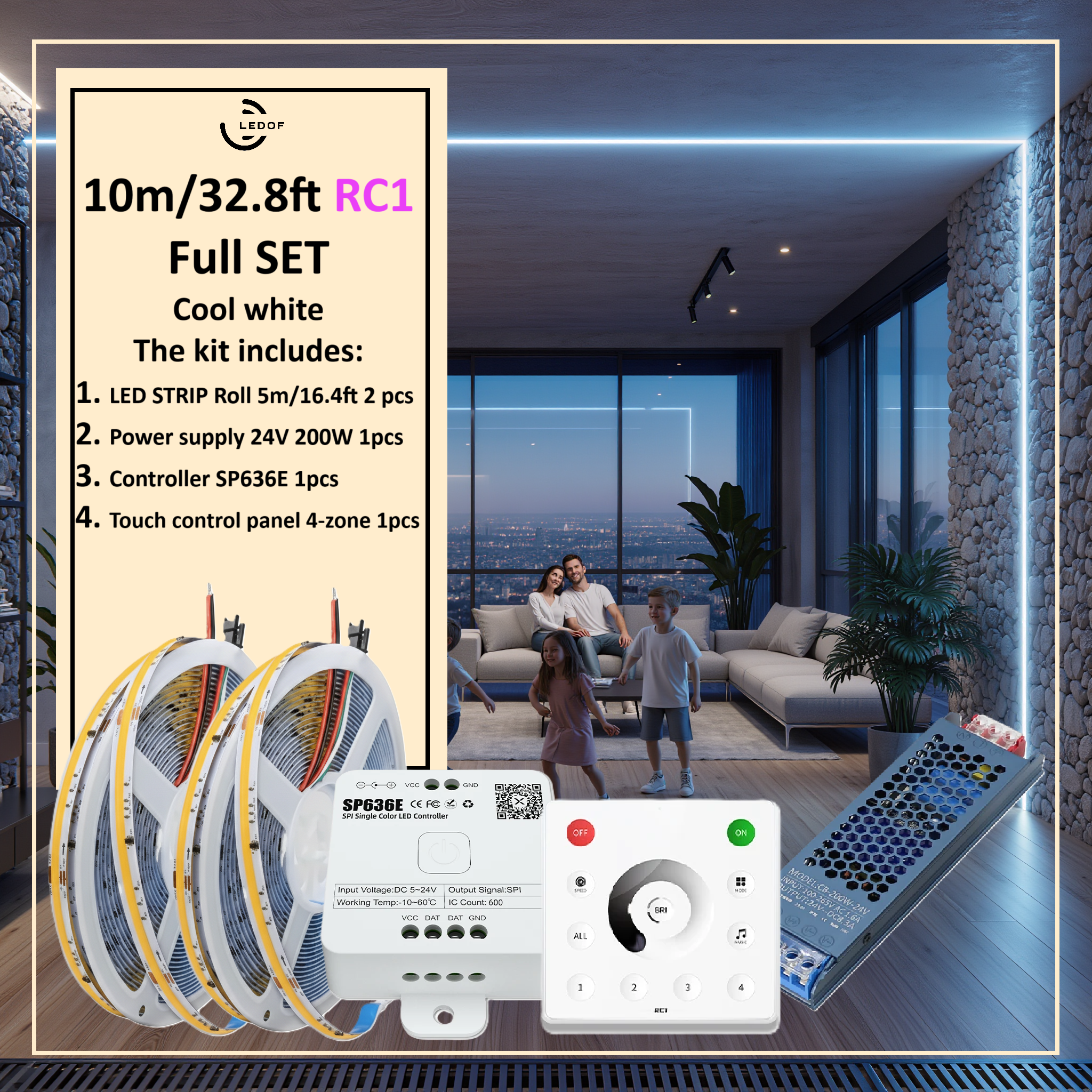

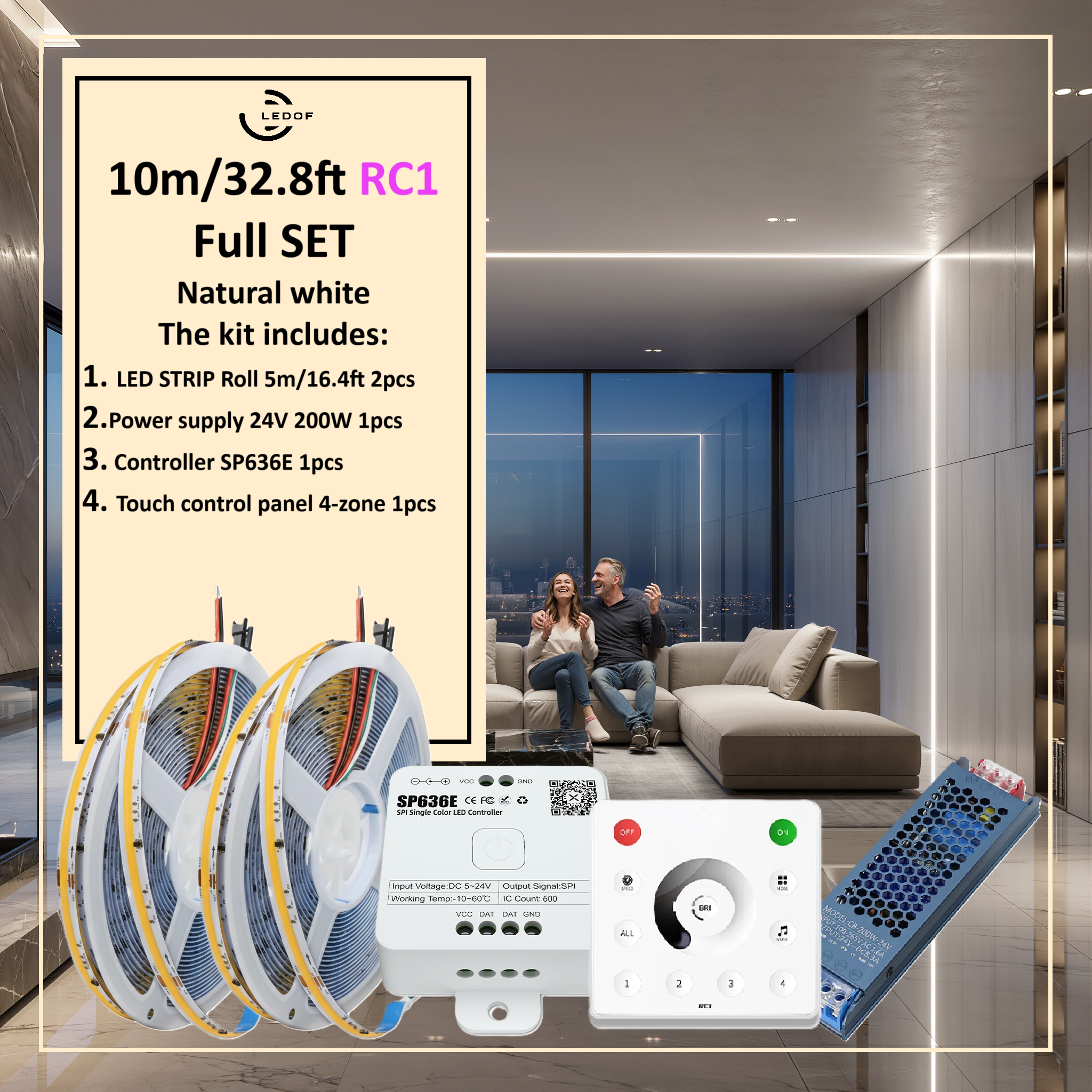

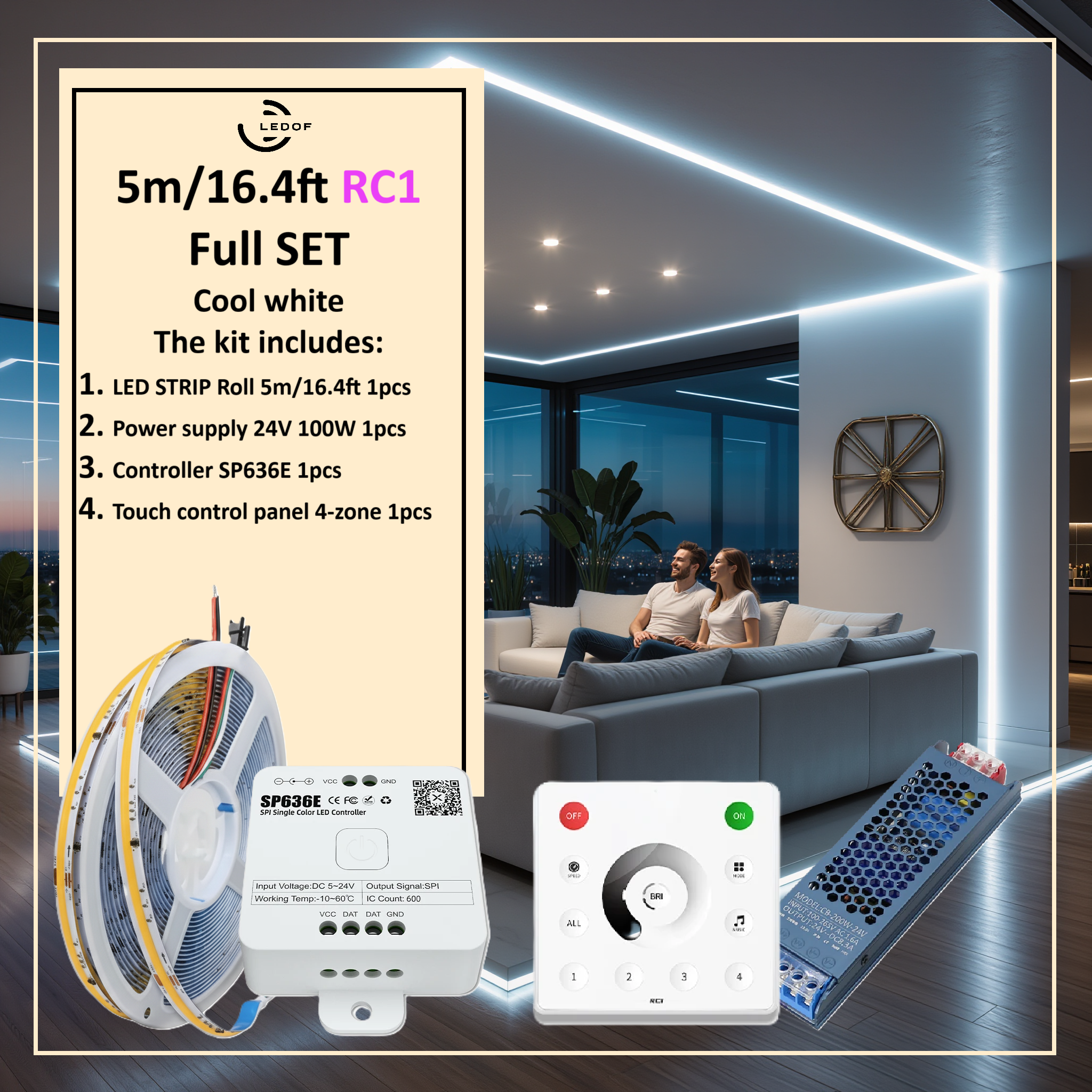

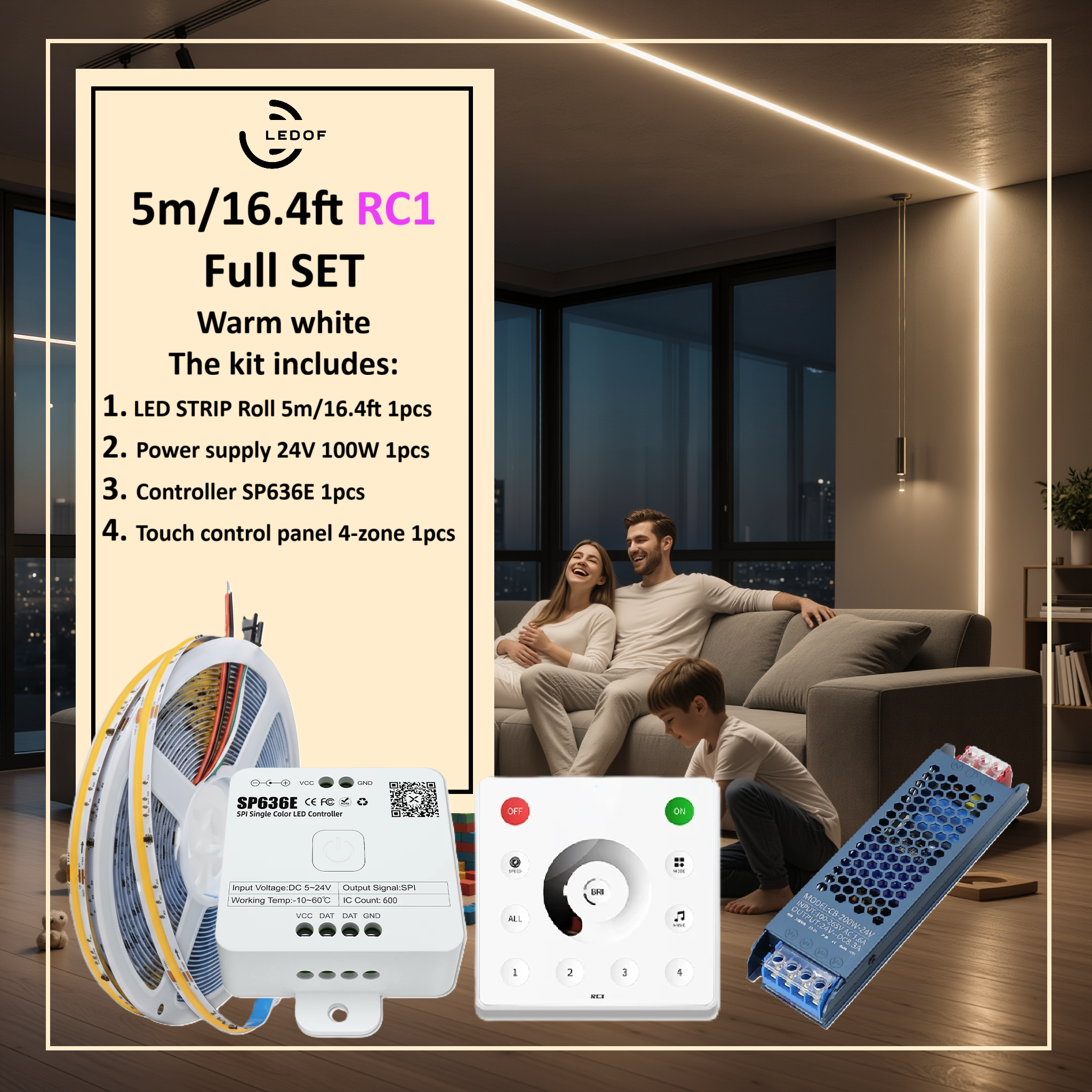

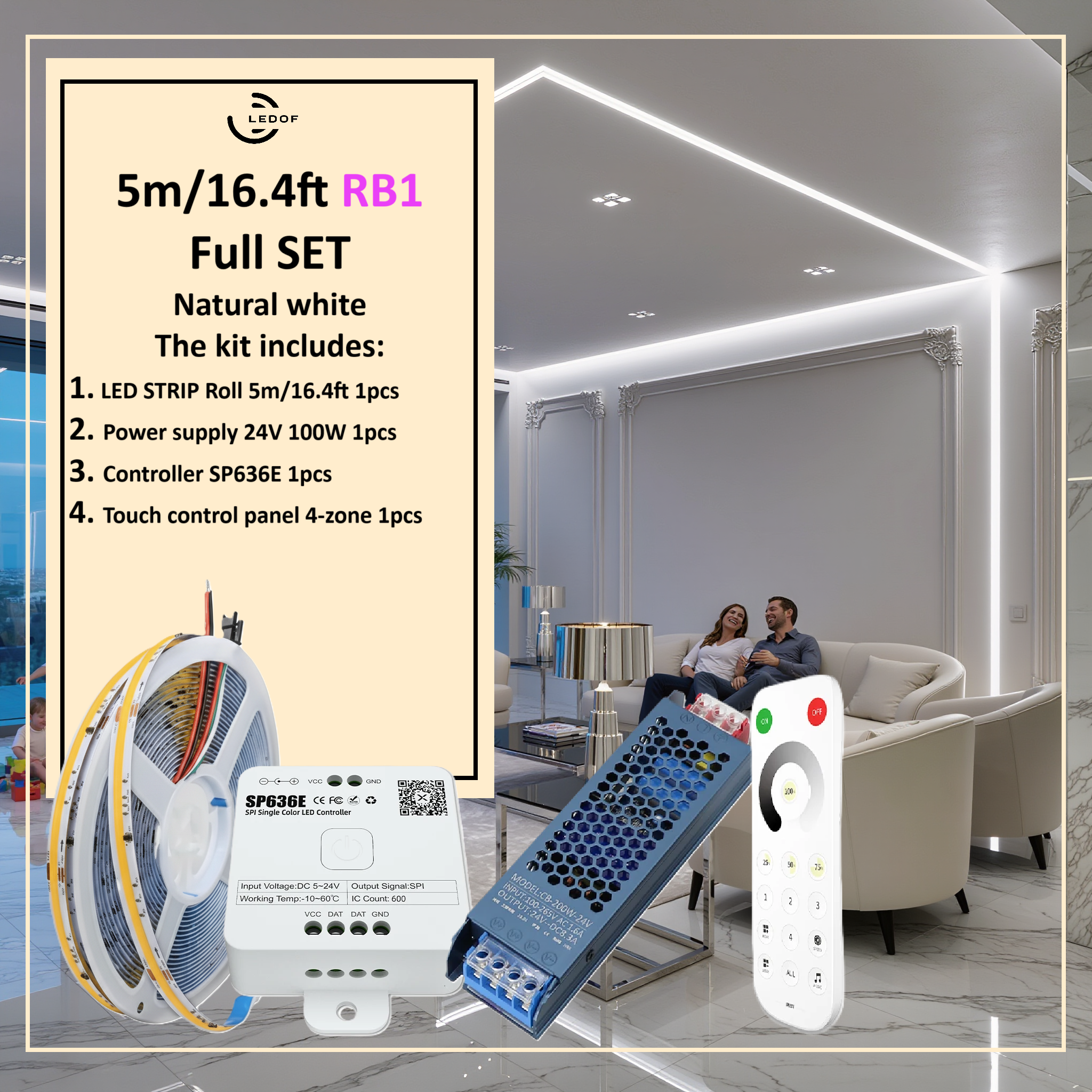

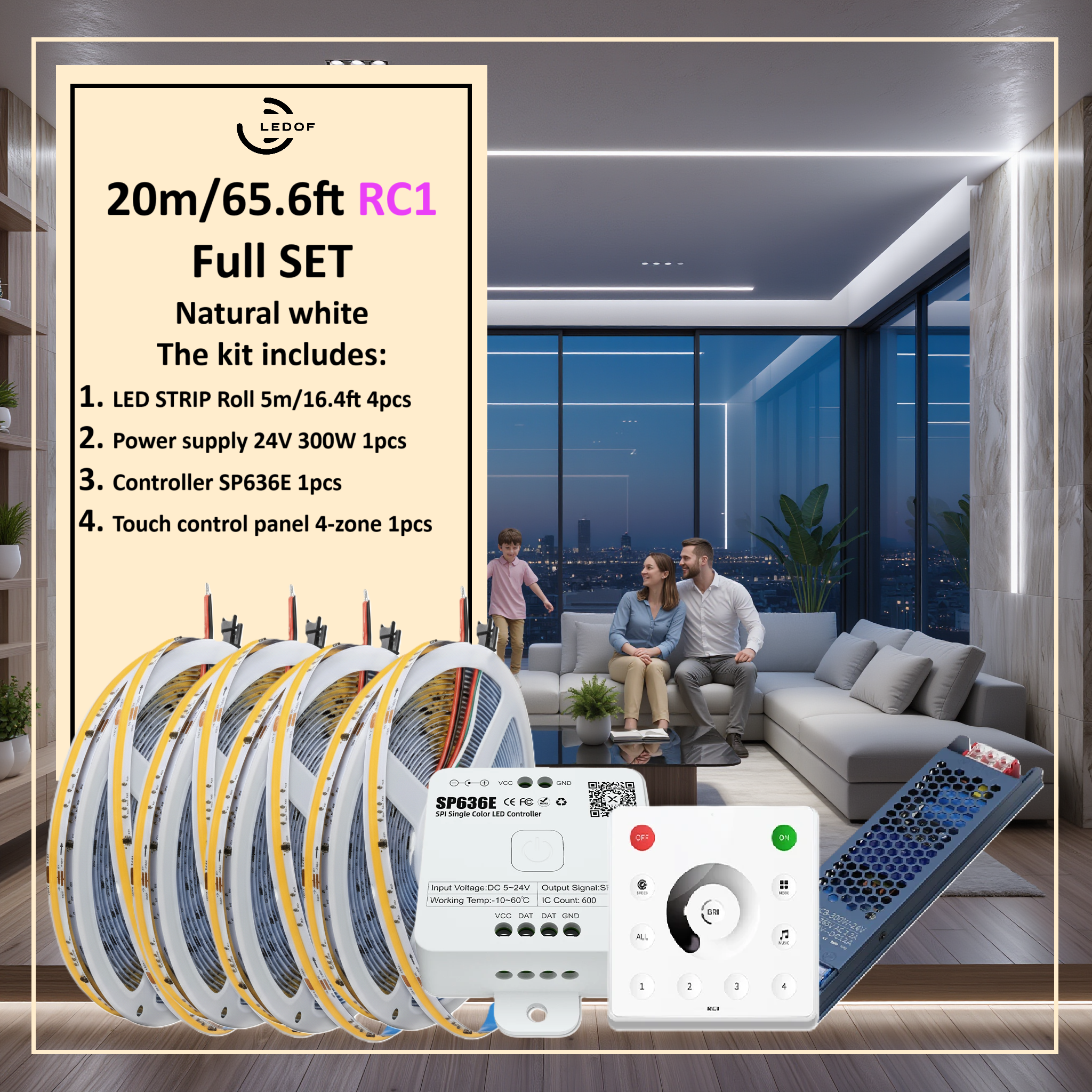

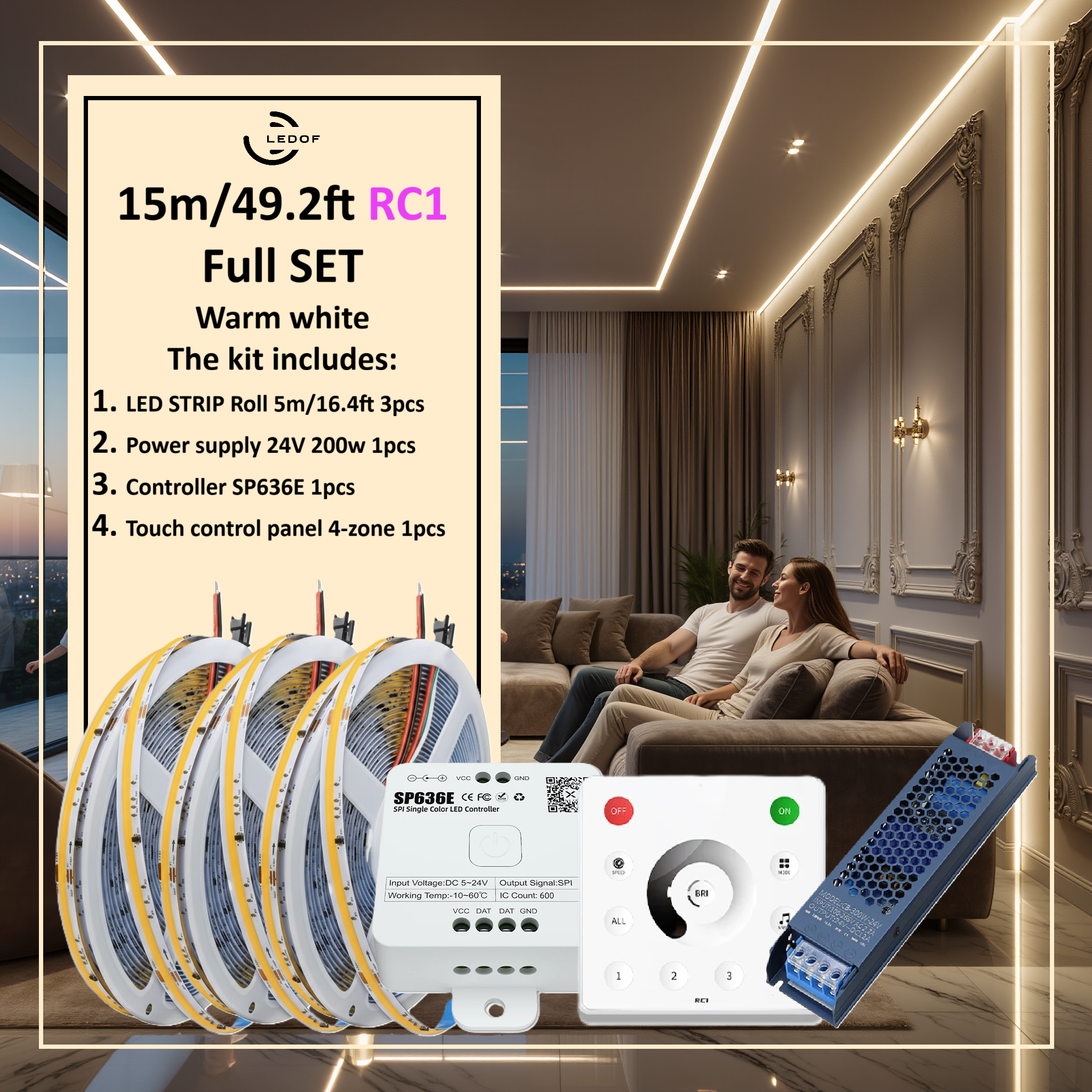

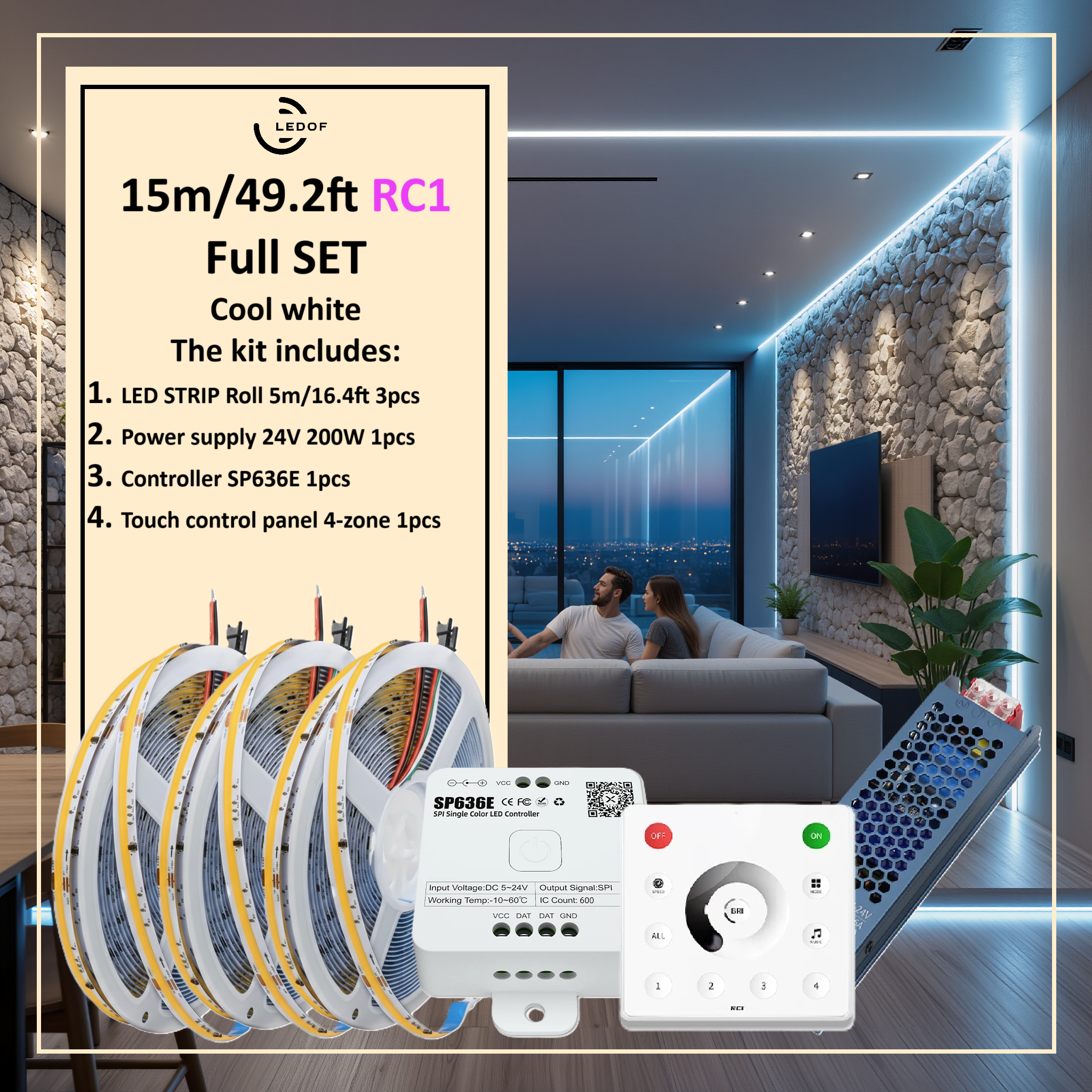

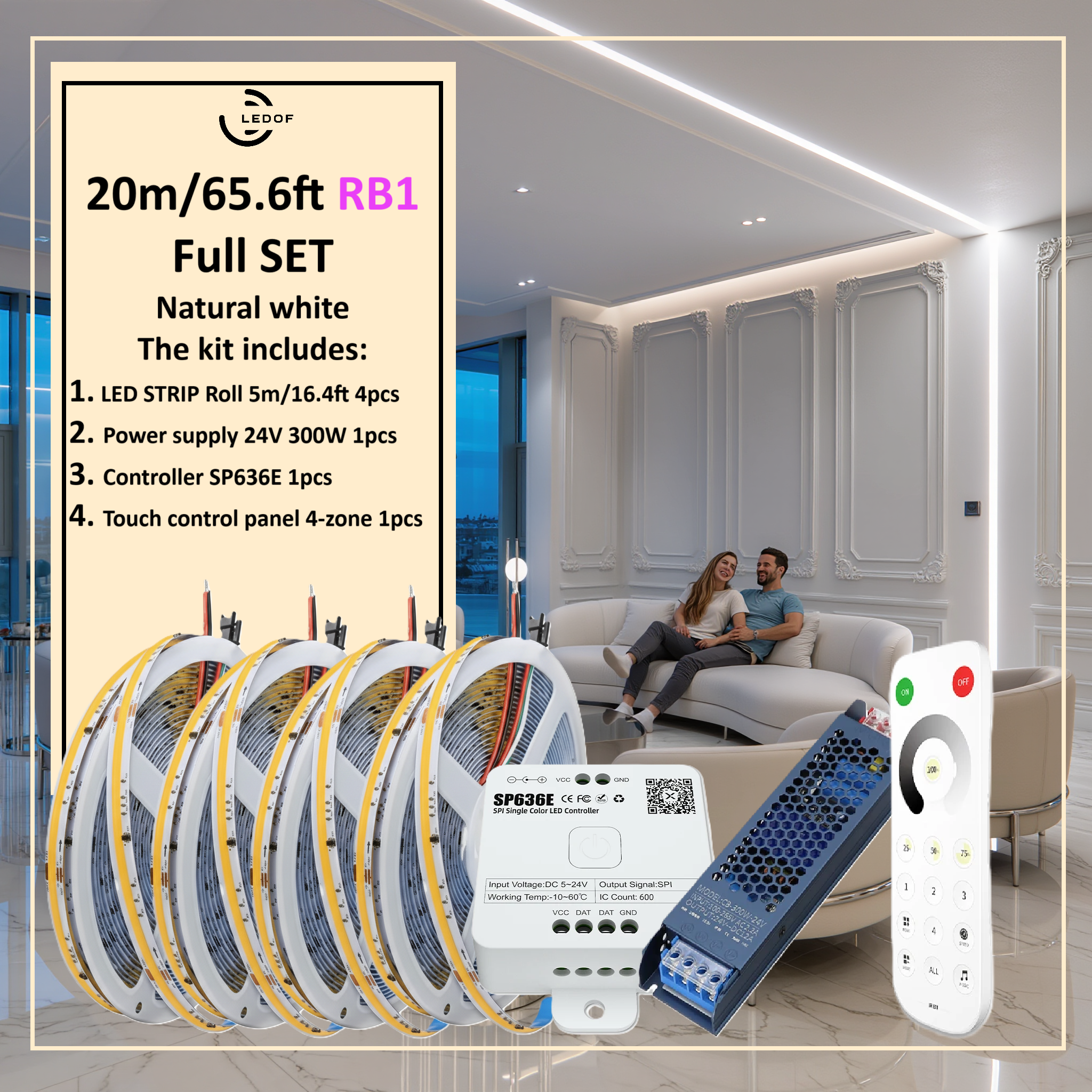

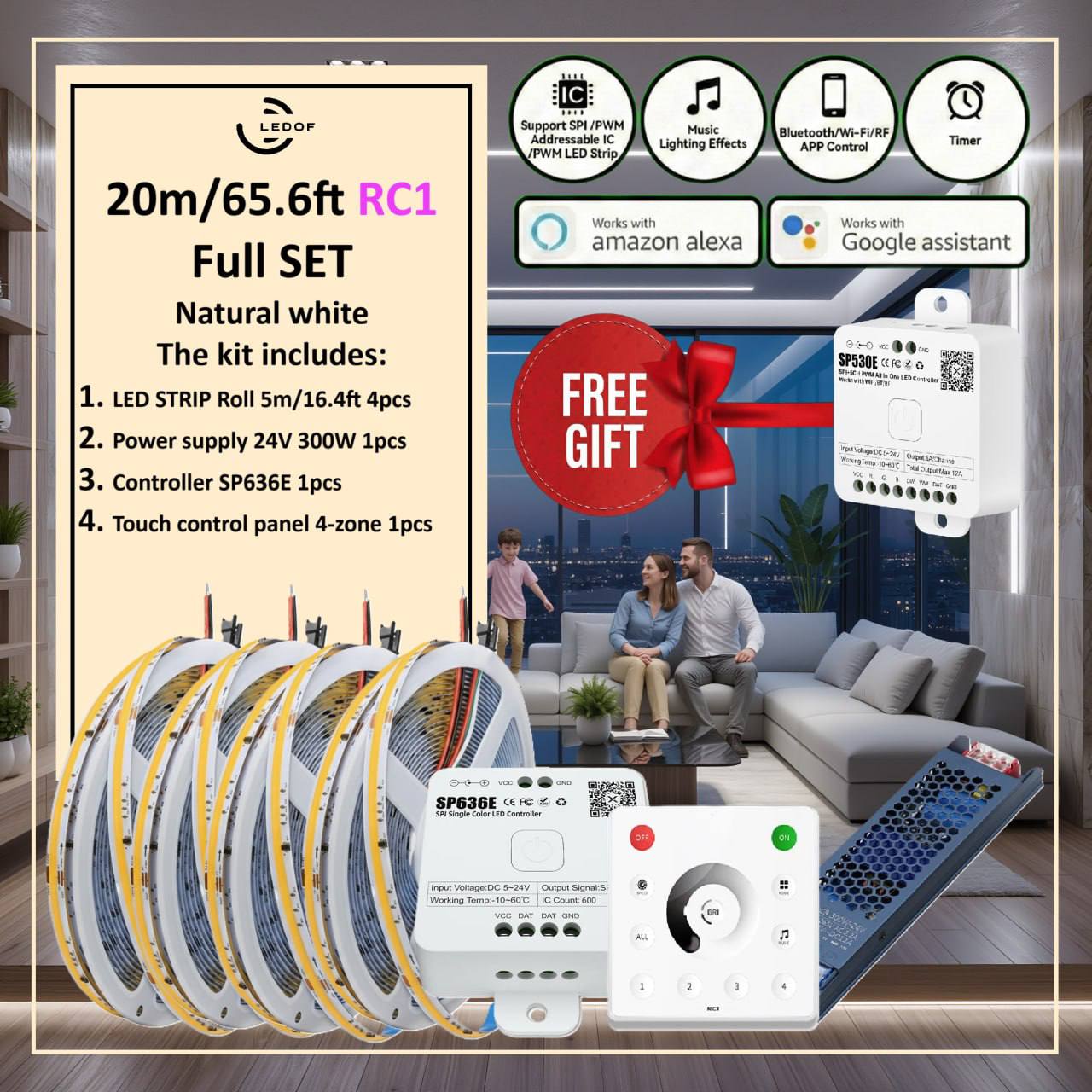

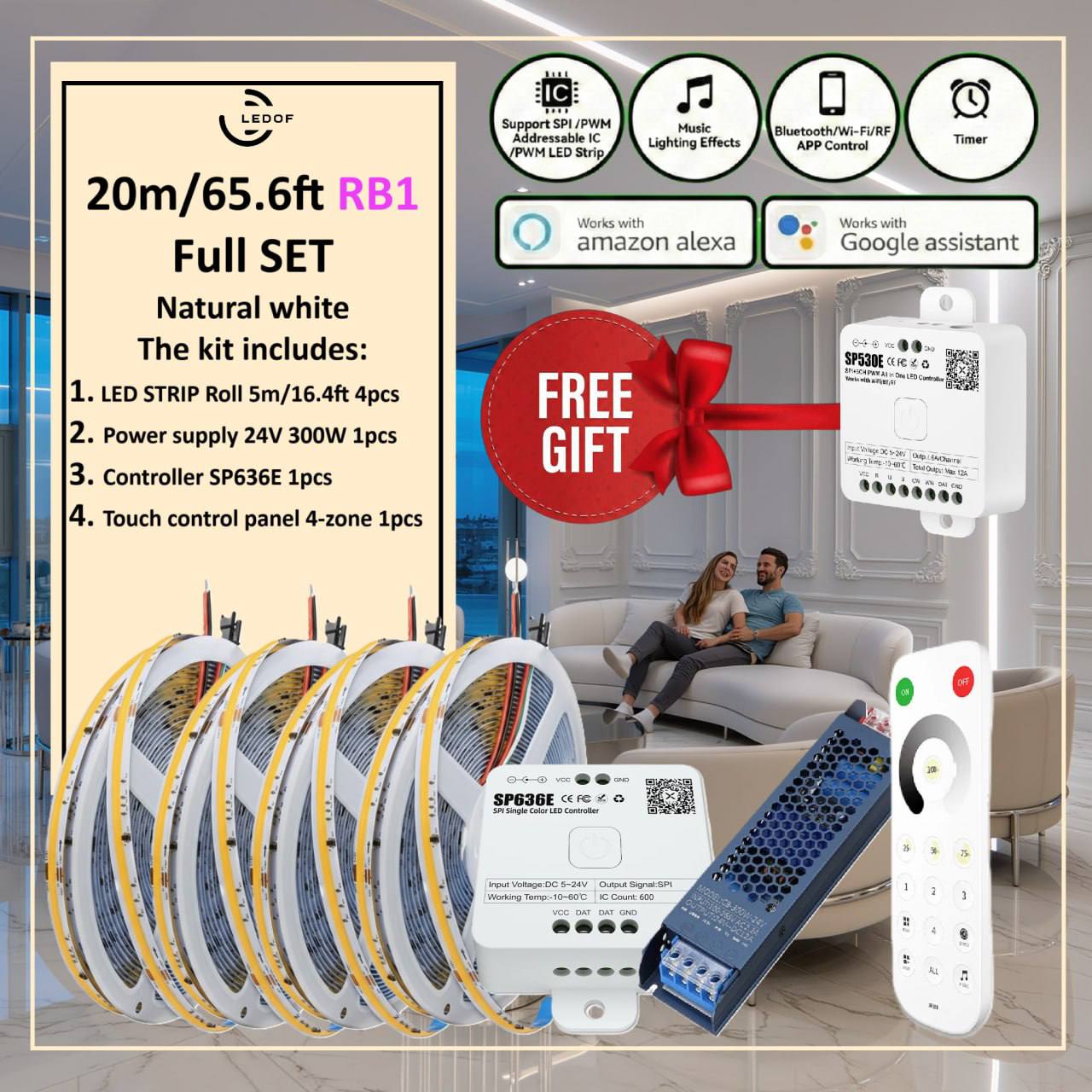

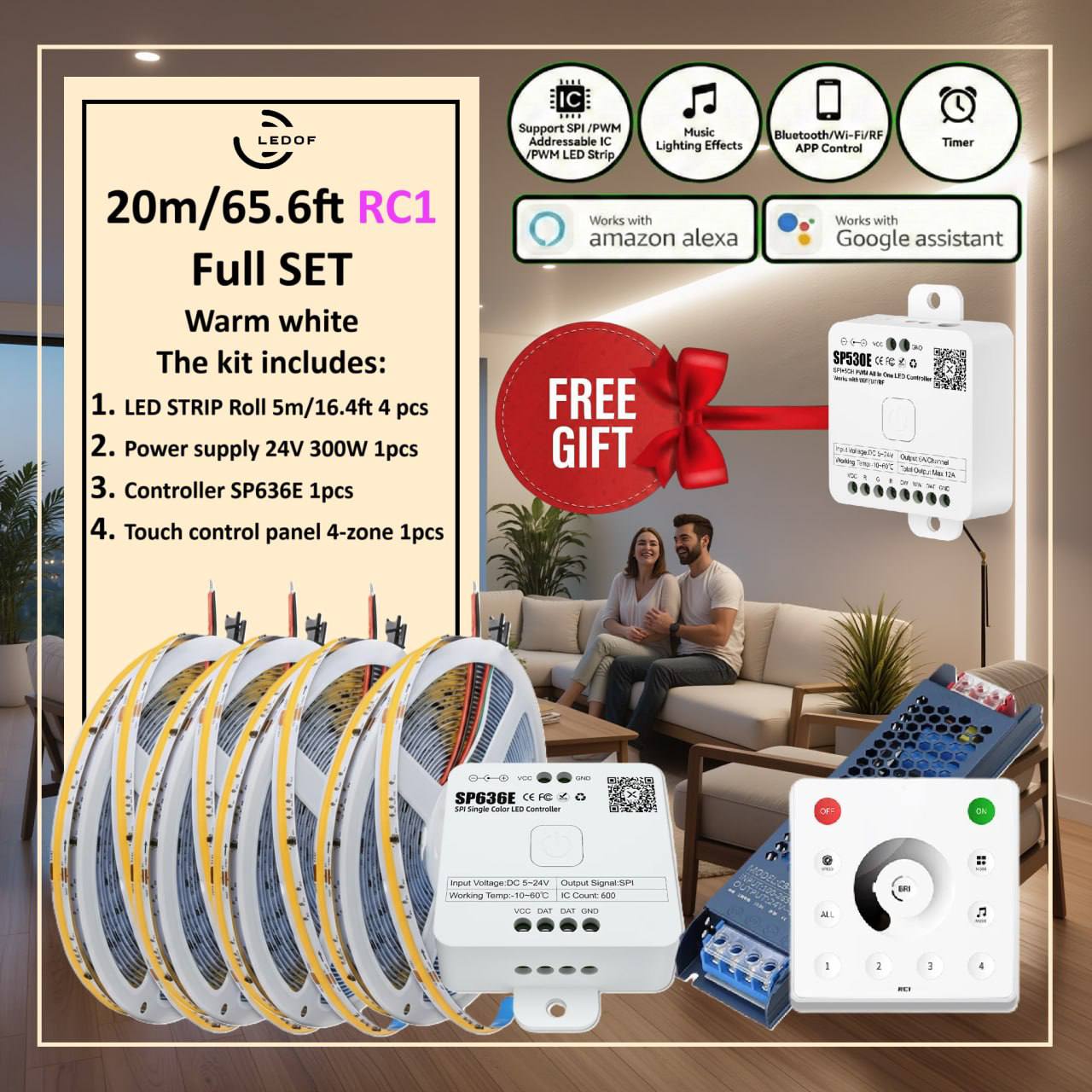

The kit includes the SP636E addressable LED controller, which unlocks all dynamic and smart features of the strip. The controller supports both:
2.4 GHz wireless remote control
Bluetooth smartphone control via mobile app (iOS & Android)
Using the app, you can:
Select built-in dynamic lighting modes
Adjust brightness, speed, and direction
Modify the active length of effects
Enable music-responsive lighting
Set timers and on/off animations
The controller also supports smooth power-on and power-off transitions, such as flowing or fading startup effects when activated via the remote or app.
Remote control battery (CR2032) is not included.
.
Installation & Flexibility
Slim & Flexible Design
With a width of just 10 mm, the strip easily fits into narrow channels and profiles. It bends smoothly along curves and straight lines, making it suitable for detailed architectural layouts.
The back of the strip is pre-applied with strong double-sided adhesive for fast and clean installation. For best adhesion, the mounting surface should be clean, dry, and free of dust or grease. On rough surfaces or for long-term installations, aluminum channels or mounting clips are recommended.
. Cutting & Connections
The strip can be cut at marked intervals using standard scissors. For reliable electrical connections, soldering is recommended, especially for long runs or professional installations. Solderless connectors may be used but must ensure firm contact with all pads.
.
Wiring Options
Direction Matters
Arrow markings on the strip indicate the data flow direction. The arrows must always point away from the controller. Incorrect orientation will prevent the strip from working.
.
Serial Connection (Daisy Chain)
Multiple strips can be connected end-to-end to form one continuous lighting line. Ensure:
Arrows align in the same direction
VCC, DATA, and GND pads are matched correctly
Joints are securely soldered and insulated
.
Parallel Connection
Multiple strips can be connected in parallel to the controller so that all strips display the same effects simultaneously. This is ideal for symmetrical layouts (e.g., both sides of a room).
All strips must:
Share a common DATA and GND from the controller
Receive proper power supply connections
.
Power Injection for Long Runs
For installations longer than 10–15 m, additional power injection is recommended. This involves supplying +24V to the far end of the strip to prevent brightness loss. Data should only be connected from the controller side to avoid signal interference.
. Safe & Reliable Operation
24V low-voltage system — safe for DIY and professional use
Approx. 10 W per meter power consumption
Runs cool and efficiently
Designed for indoor use (IP20)
Recommended to fully unroll the strip before powering at full brightness
When installed on metal surfaces, the surface can act as a heat sink, improving longevity.
This addressable COB LED strip kit is designed for everyone — from professional installers to first-time users. Installers appreciate its reliability, clean light output, and flexible wiring options, while end users enjoy intuitive control, dynamic effects, and a premium visual result.
Whether used for architectural accents, baseboards, ceilings, furniture, or creative lighting projects, this system delivers professional-grade performance with simple, plug-and-play operation.
