SPECIFICATIONS
Brand Name: LEDOF
Hign-concerned Chemical: None
Origin: Mainland China
Material: ABS
Item Type: Dimmers
Warranty: 5 YEARS
Model Number: 4 Zone Dimming Kit RS1/V1
Max. Load Power: 288W
Certification: ce
Certification: ROHS
Features: 4 Zone Dimming
Input voltage: 5-36VDC
Input current: 8.5A
Output voltage: 5-36VDC
Output current: 1CH,8A
Output power: 40W/96W/192W/288W (5V/12V/24V/36V)
Output type: Constant voltage
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM frequency: 2000Hz (default)
Protection: Reverse polarity Over-heat Over-load Short circuit
Choice: yes

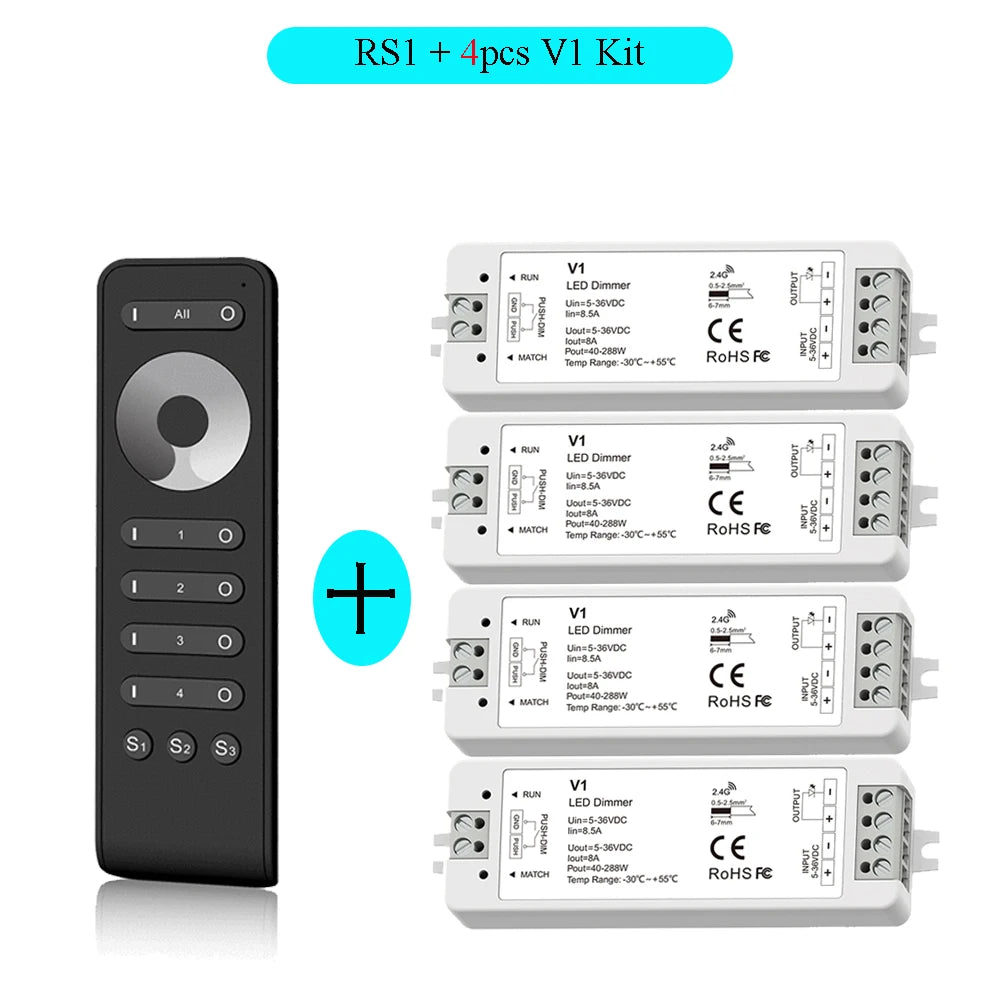

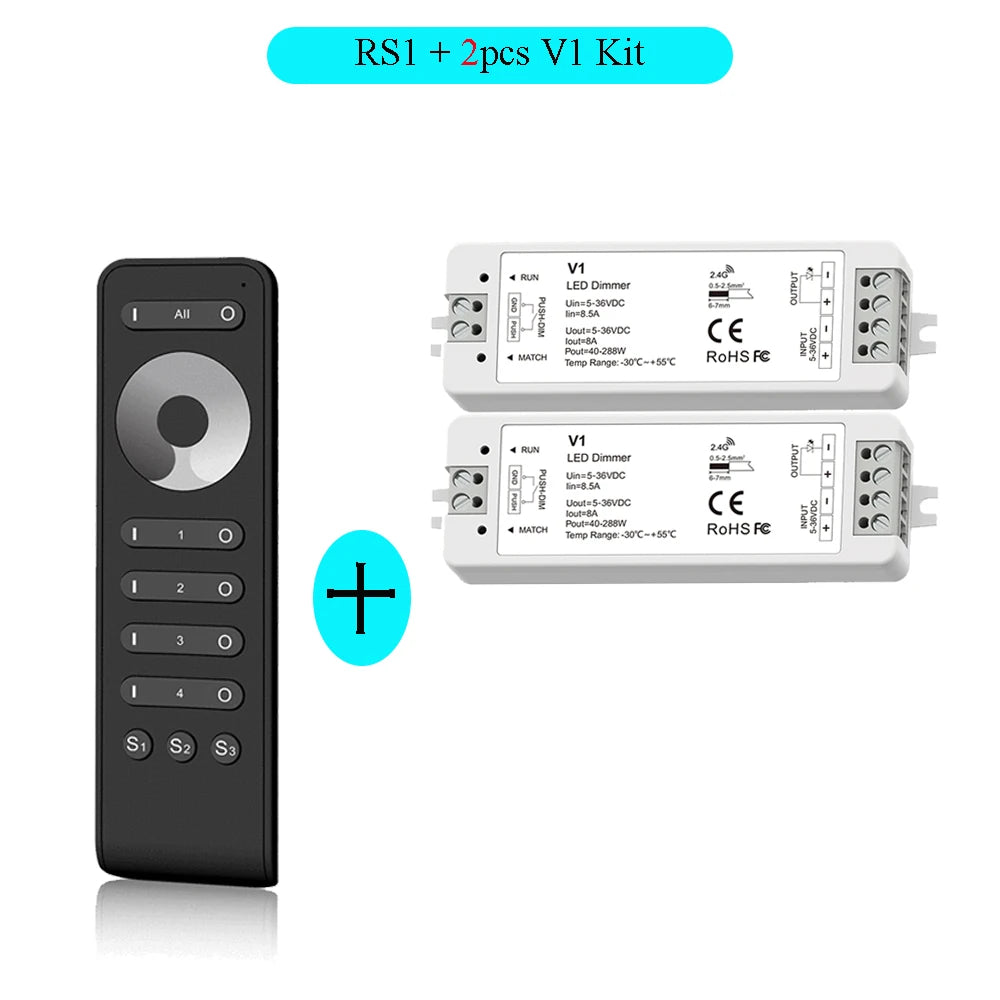

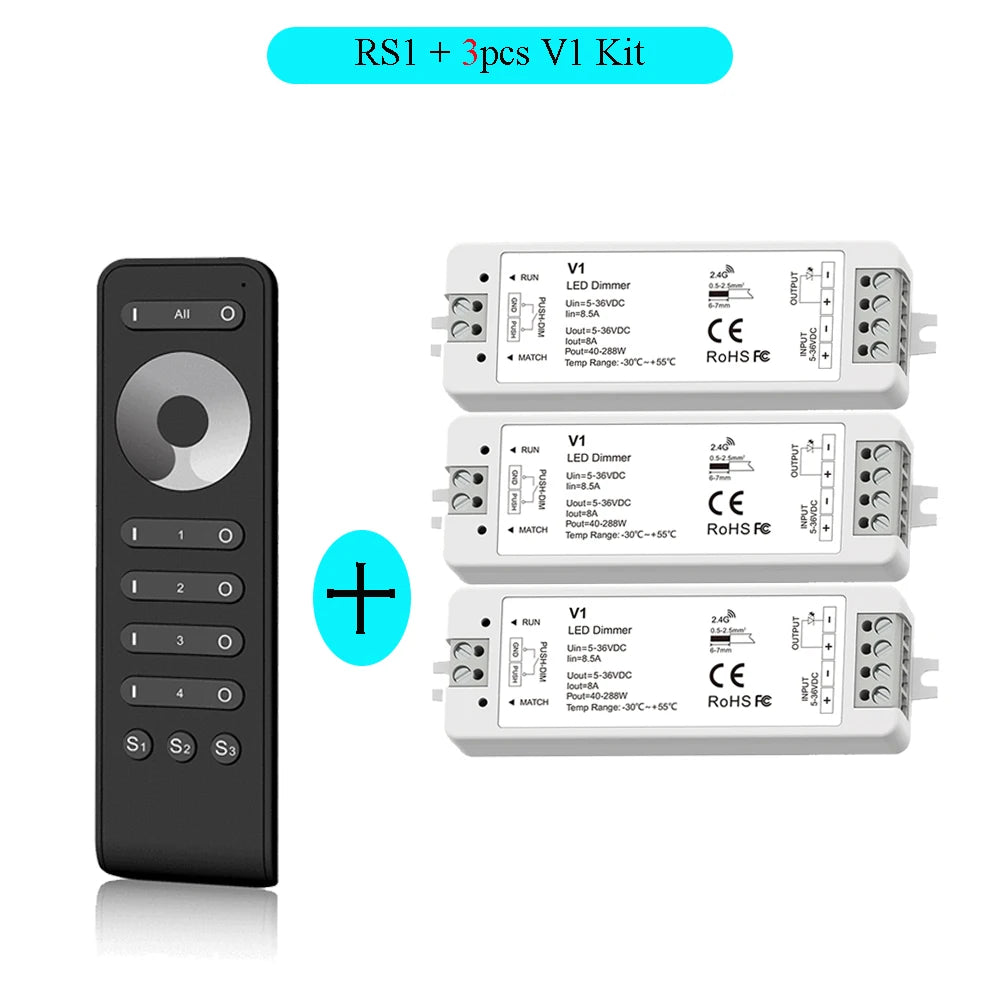

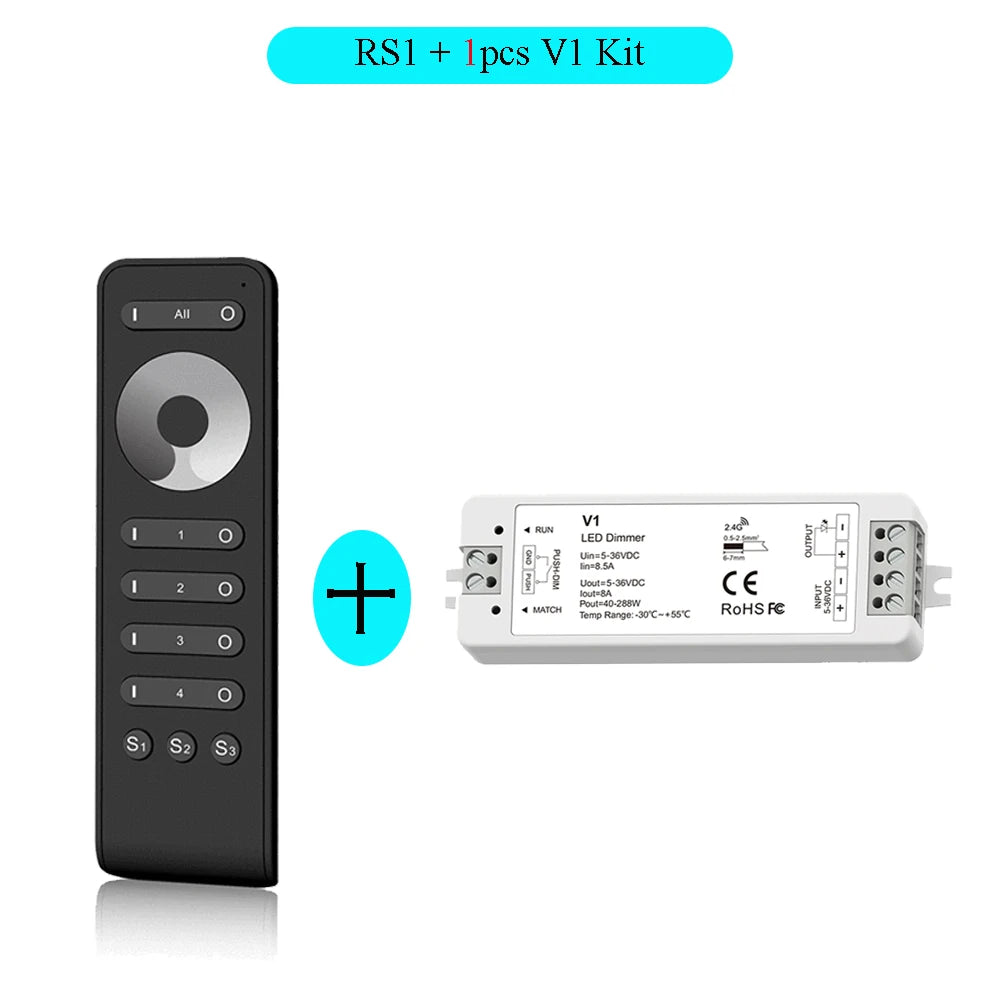

4 Zone Dimming Kit V1 Single Color LED Dimmer DC 5V 12V 24V 36V Push Switch Dimming 13-Key Touch Wheel Wireless RF 2.4G Remote Controller RS1
Model: V1/RS1
Features:
V1:
● Used to control single color LED strip.
● 4096 levels 0-100% dimming smoothly without any ash.
● Connect with external push switch to achieve on/off and dimming function.
● Light on/off fade time 3s selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.

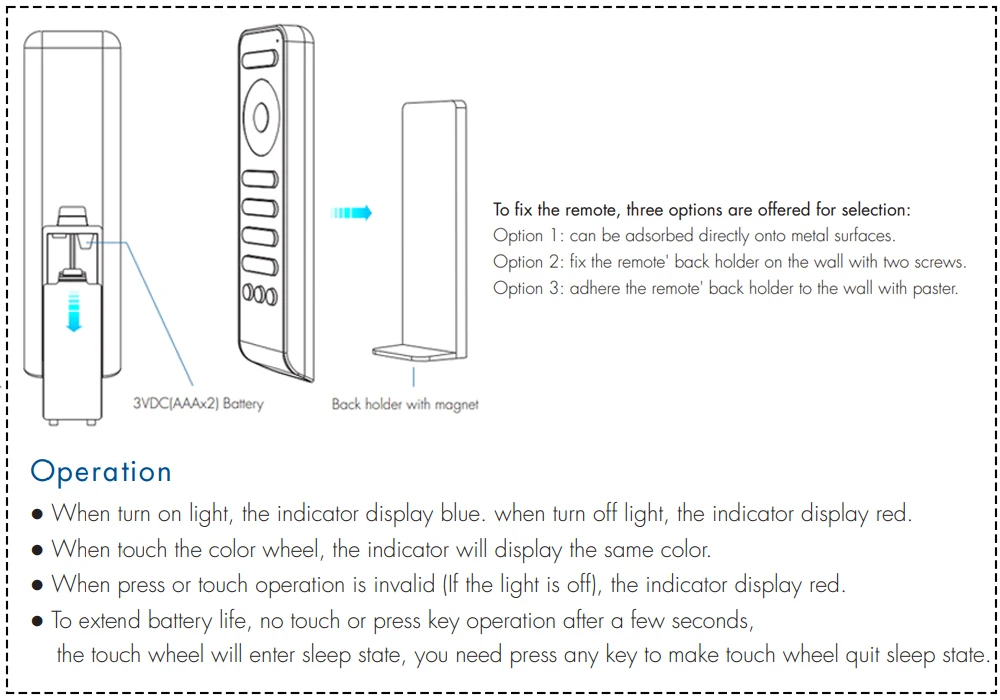

RS1:

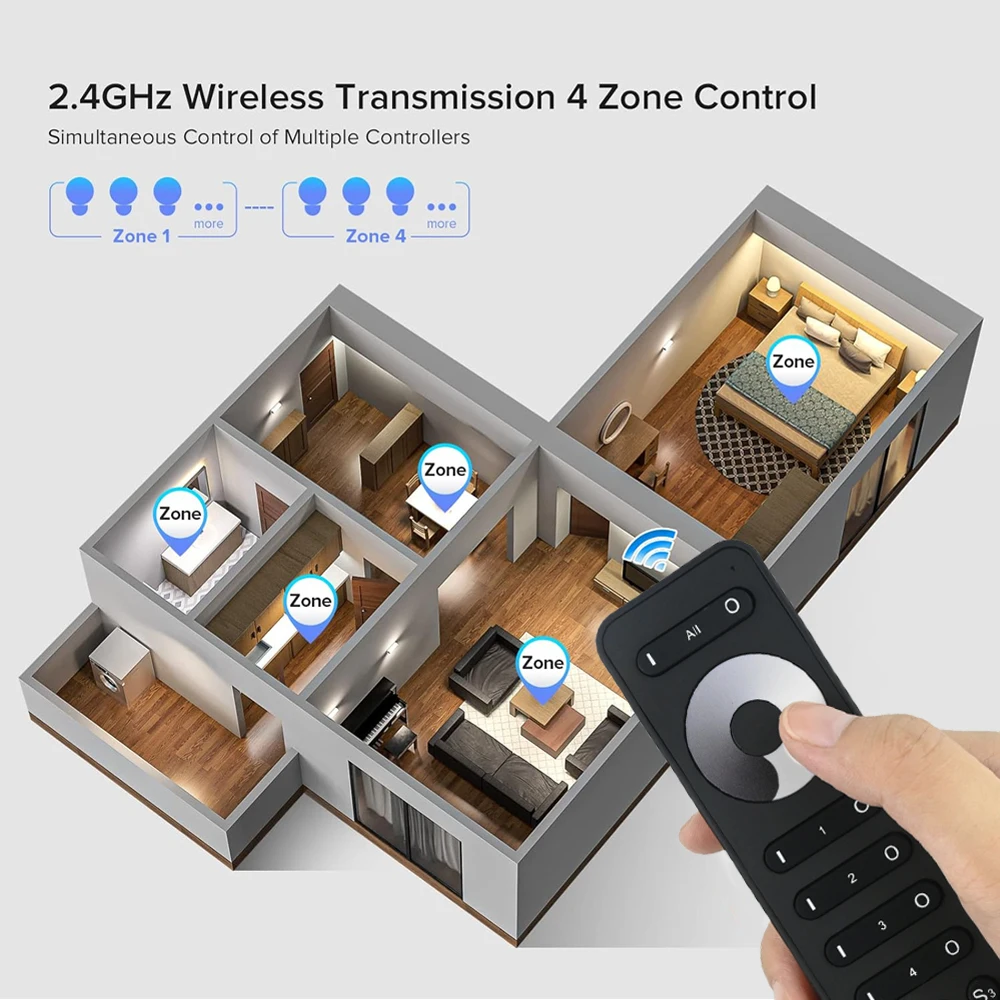

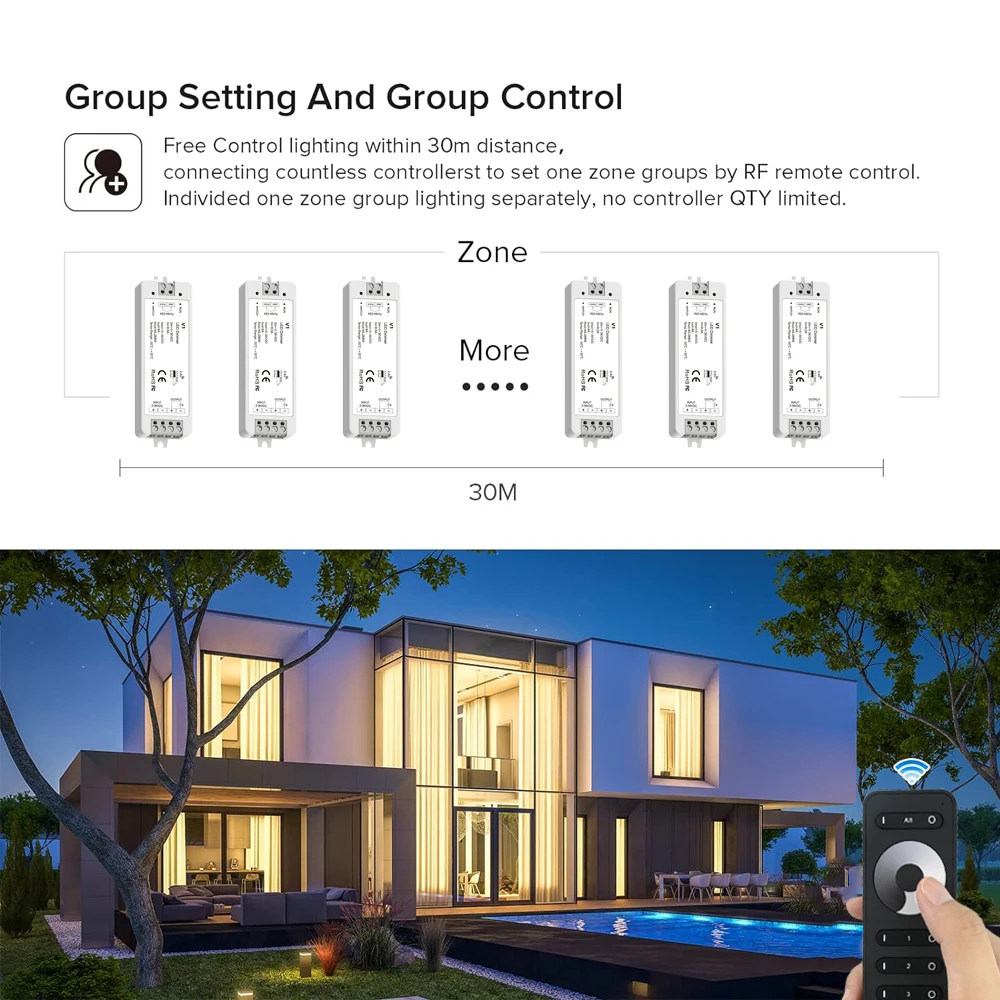

● 4-zone dimming remote control
● 13-Key control Touch color wheel smooth dimming
● 2.4G RF control

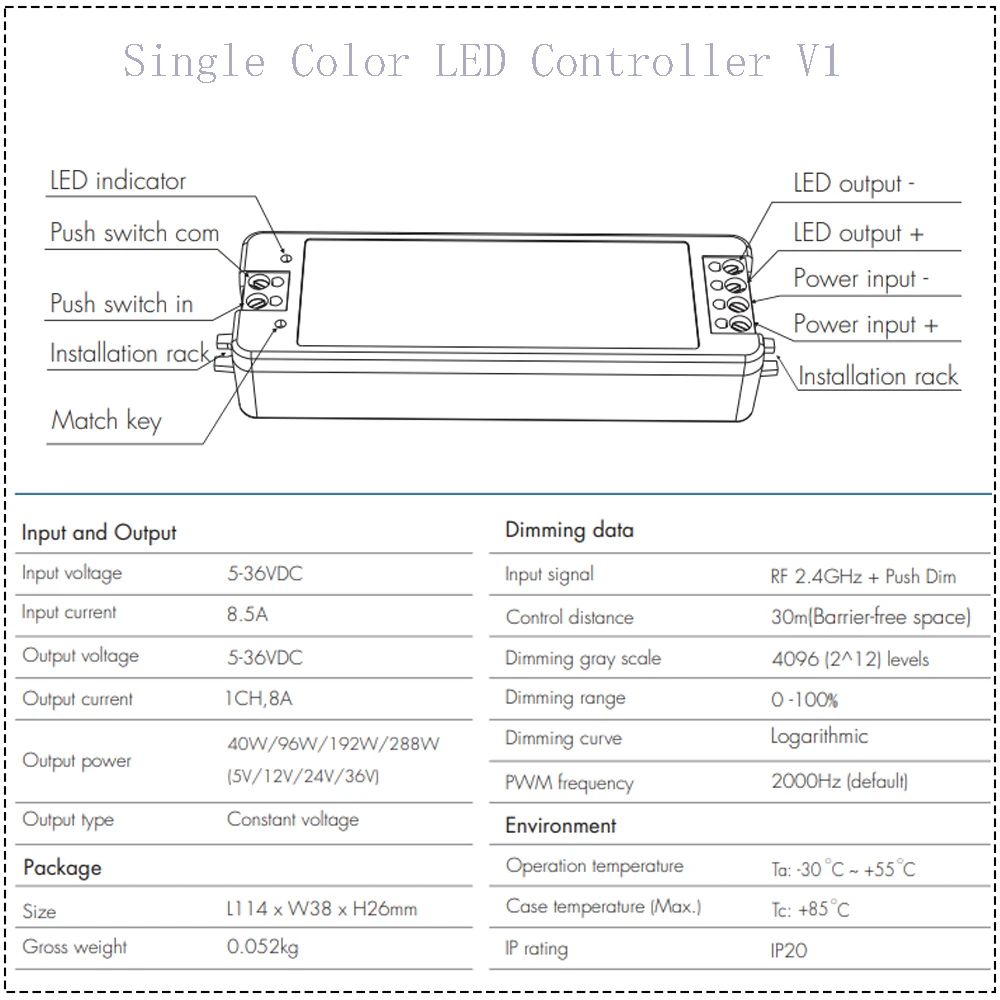

Main parameters:
Input voltage: 5-36VDC
Input current: 8.5A
Output voltage: 5-36VDC
Output current: 1CH,8A
Output power: 40-288W
Light type: Constant voltage
Packing List
It depends on what you selected. Please check the SKU image.

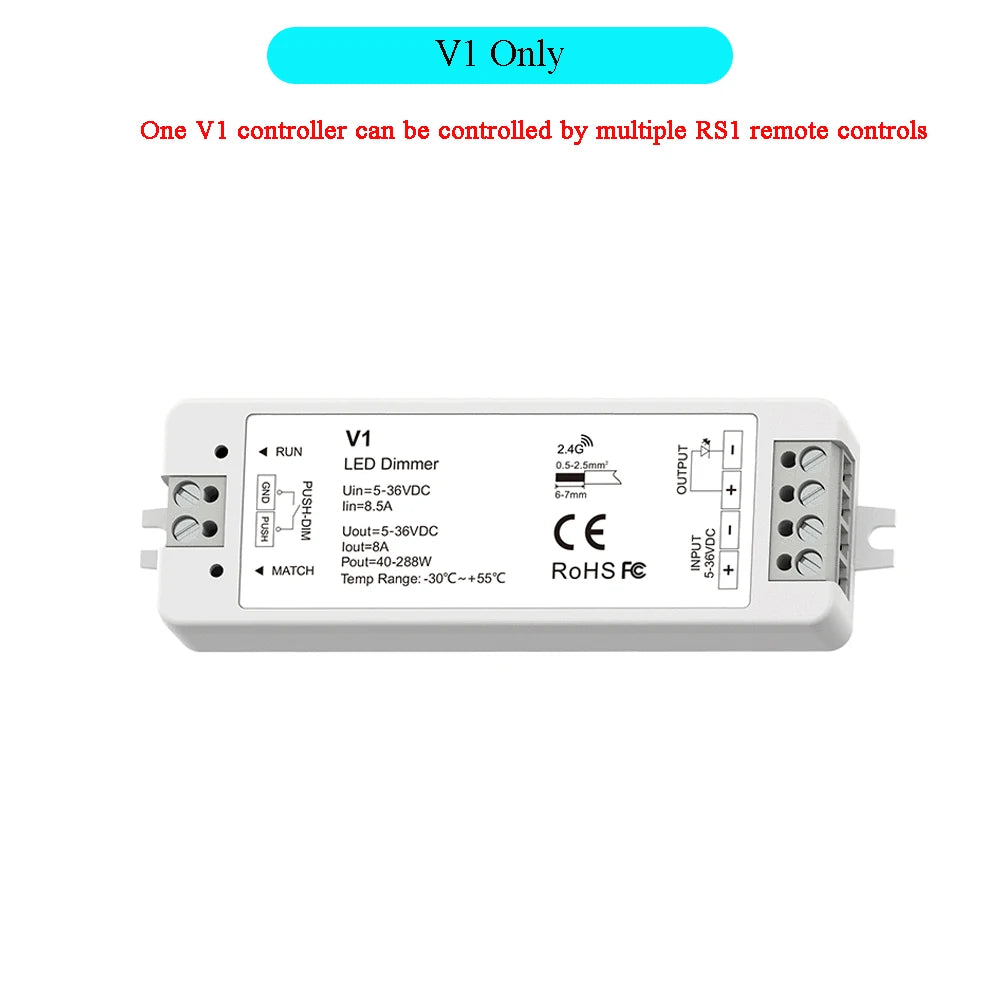

V1 only = 1pcs V1 dimmer only
For shipping safety, please understand that there is no battery included.

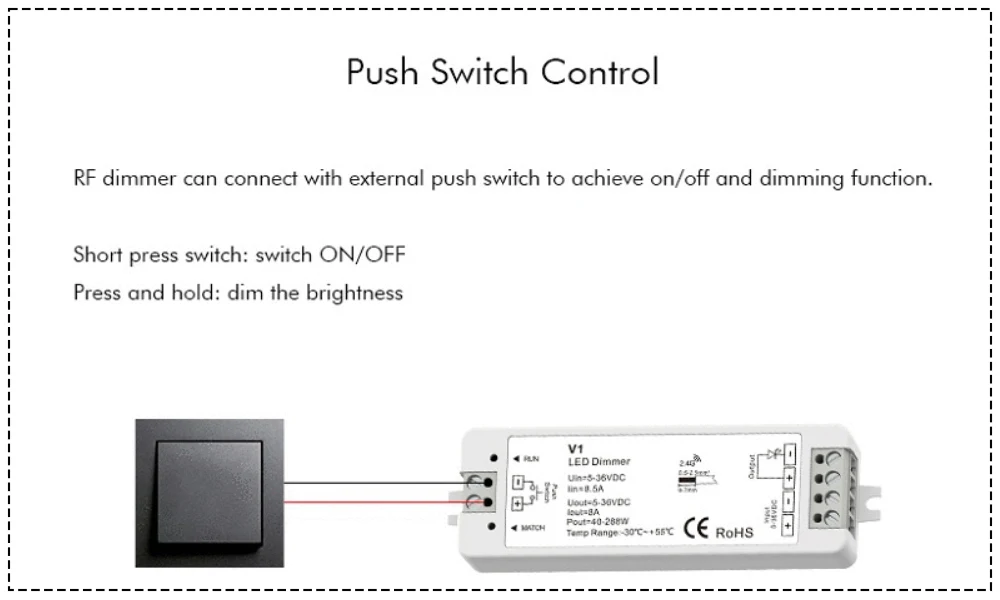

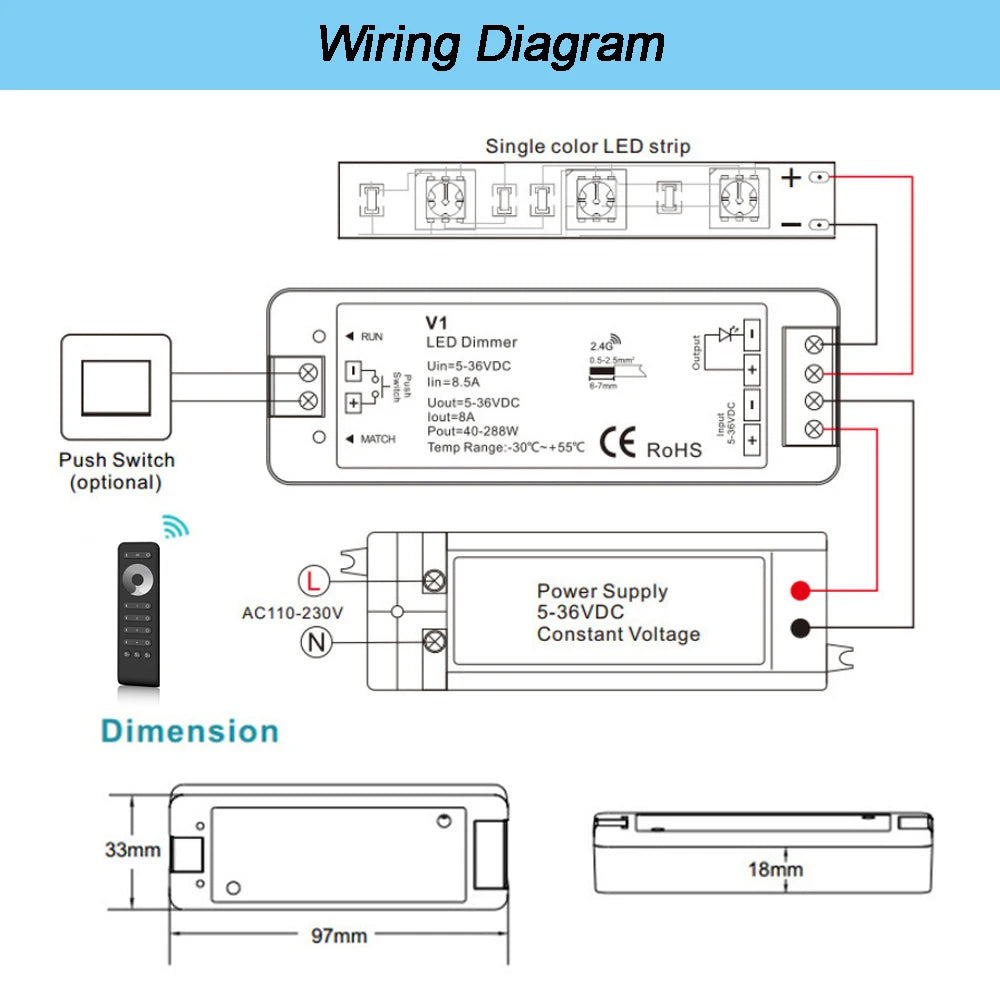

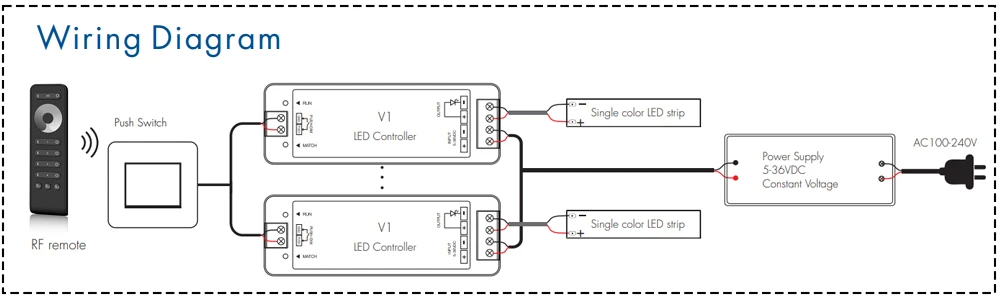

● V1 Connect with external push switch to achieve on/off and 0-100% dimming function.
The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.
● Short press: Turn on or off light.
● Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.
● Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure.

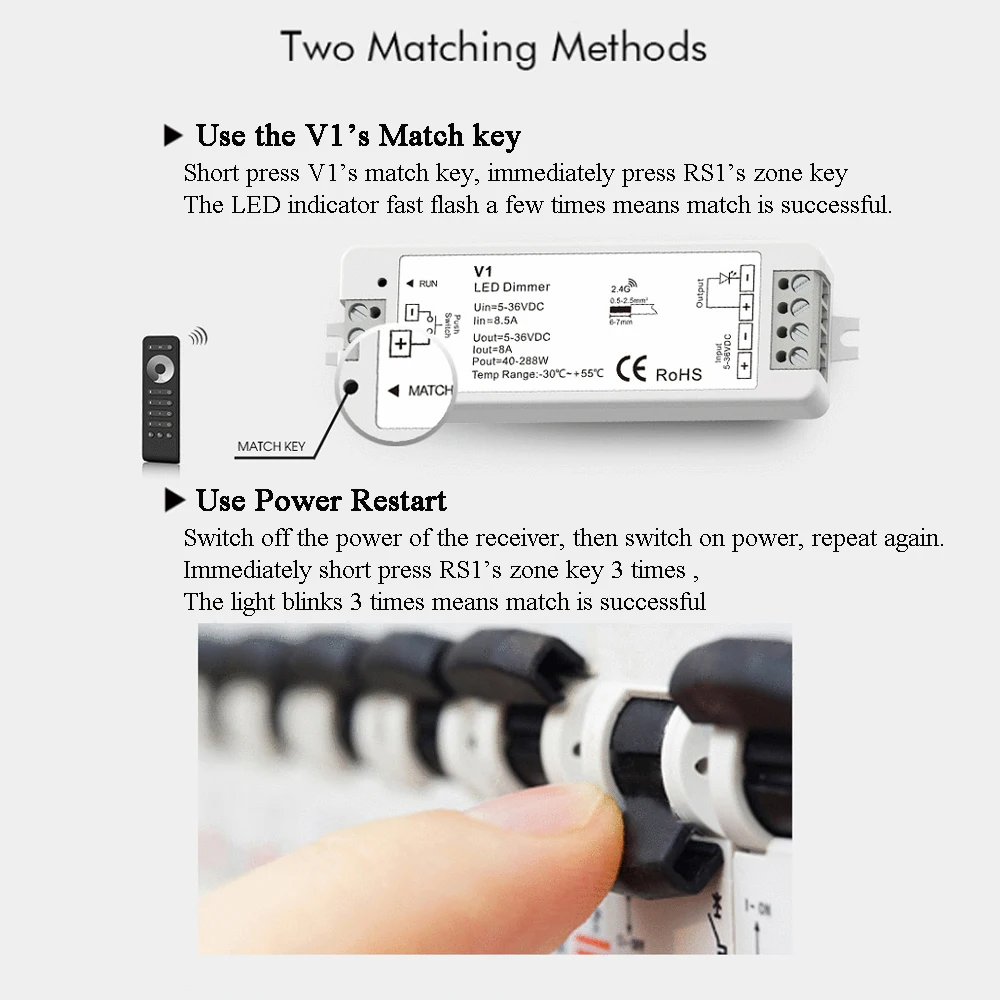

Light on/off fade time
●long press match key 5s, then short press match key 3 times,
the light on/off time will be set to 3s, the indicator light blink 3 times.
●Long press match key 10s, restore factory default parameter,
the light on/off time also restore to 0.5s.

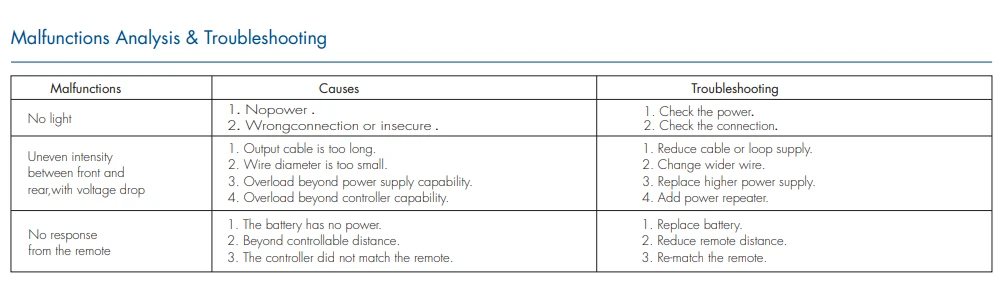

Installation Precautions
1. The products shall not be stacked, the distance should be ≥ 20cm, so as not to affect lifespan of the products due to poor heat dissipation.
2. The product shall not be installed close to the switching power supply with an interval of ≥ 20cm to avoid radiation interference of the switching power supply.
3. The installation height shall be ≥ 1m from the oor to avoid shortening the remote control distance due to too weak reception signal.
4. The products are not allowed to be close to or covered by metal objects, with an interval of ≥ 20cm to avoid signal attenuation and shorten the remote distance.
5. Avoid installation at the corner of the wall or the corner of the beam, with an interval of ≥ 20cm to avoid signal interference.
