SPECIFICATIONS

• Controller with daylight sensor, when sufficient ambient light, the PIR sensor does not turn on the light.
• 32 channels single color LED strip supported, Max 1A current per channel.
• 2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip, IC type and R/G/B order can be set.
• Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
• UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803, LPD1101,
• D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.

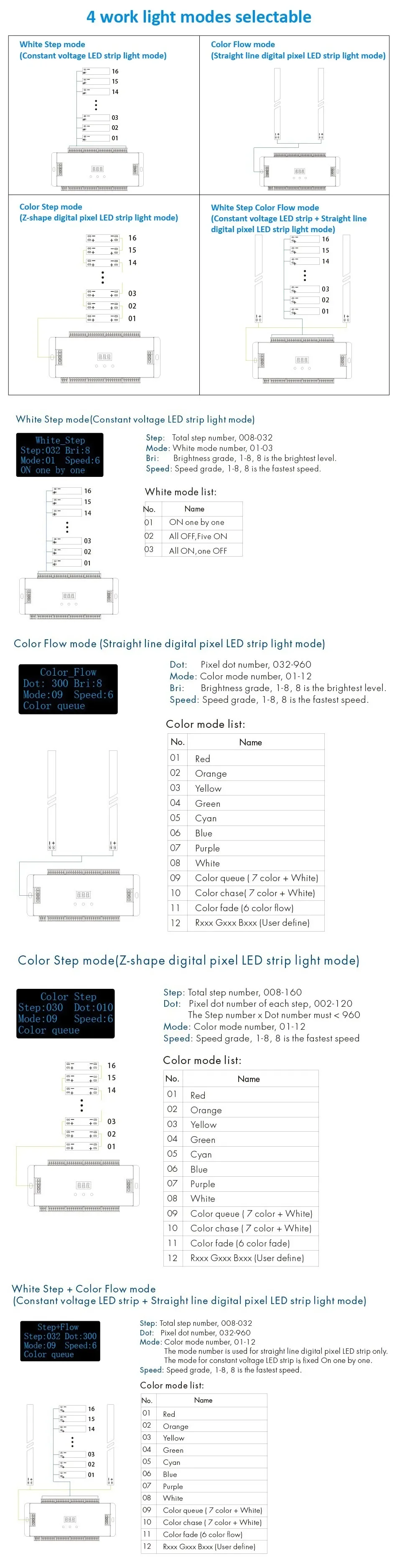

• 4 working modes selectable. Built-in multiple color mode, speed and brightness 1-8 grade adjustable.

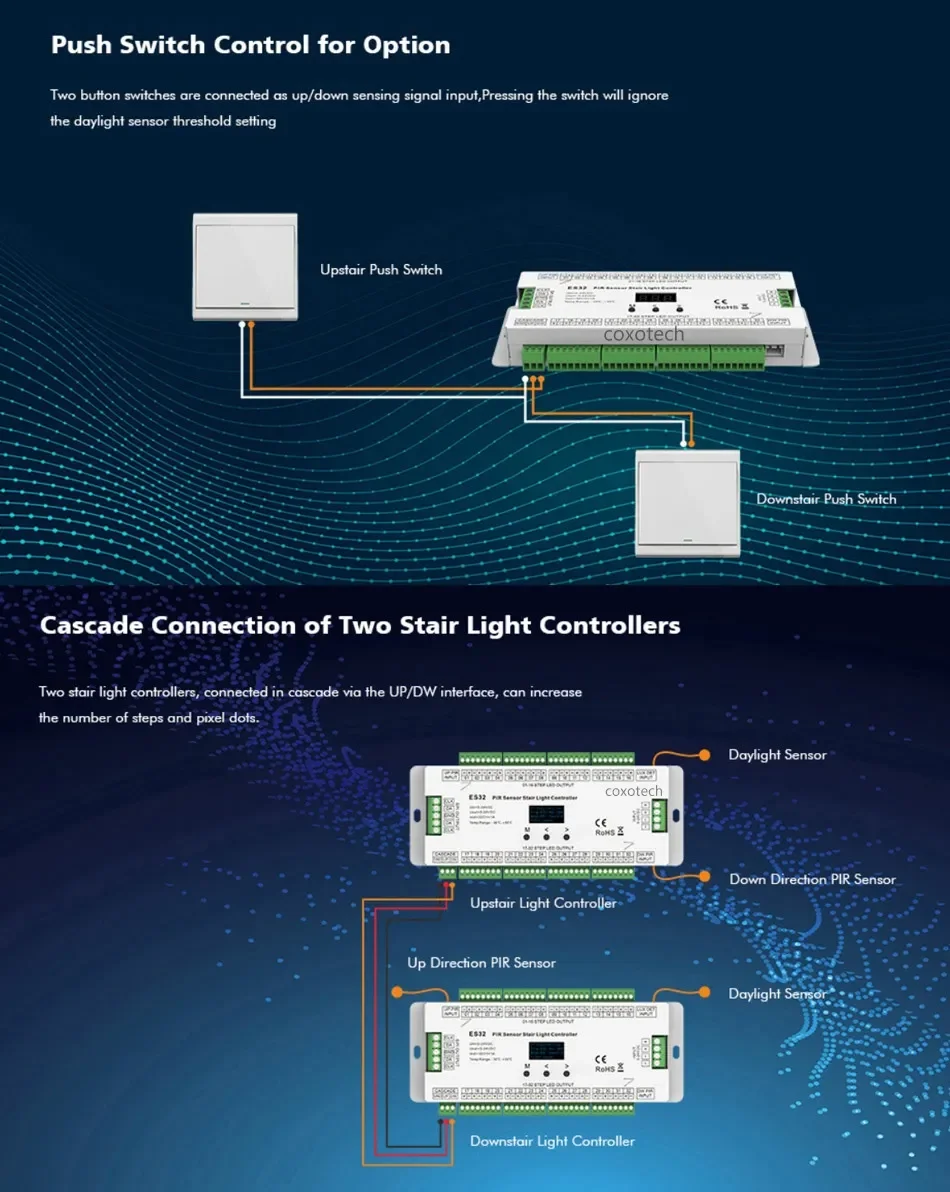

• Two stair light controllers can cascade.
• Push switch can be used as induction signal input.

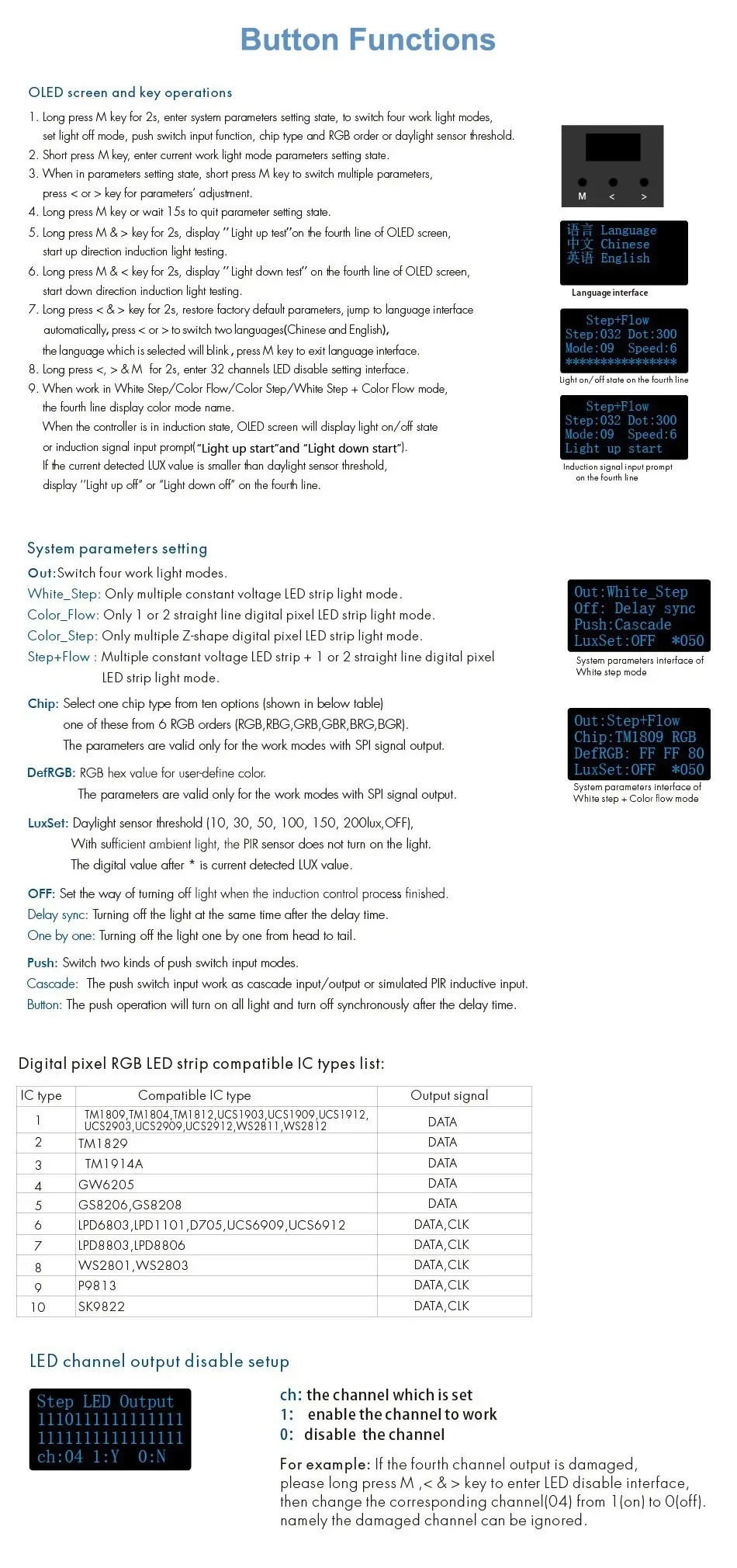

• Easy operation with OLED display and 3 buttons.
• Any damaged LED channel in 32 channels can be set disable.

• LED strip COB 480 LEDs/m length: 5 meters
• Dimmable: Yes
• LED quantity: 480 LEDs/m
• Input voltage: 24V
• Power: 10W/m
• FPCB width: 8mm
• Cut length: 50mm.
• Color temperature: warm white (3000K), natural white (4000K), cold white (6500K).
• Color rendering index: Ra＞90
• Working temperature: -20 -+45
• Storage temperature: -20 -+60
• Viewing angle: 180°
